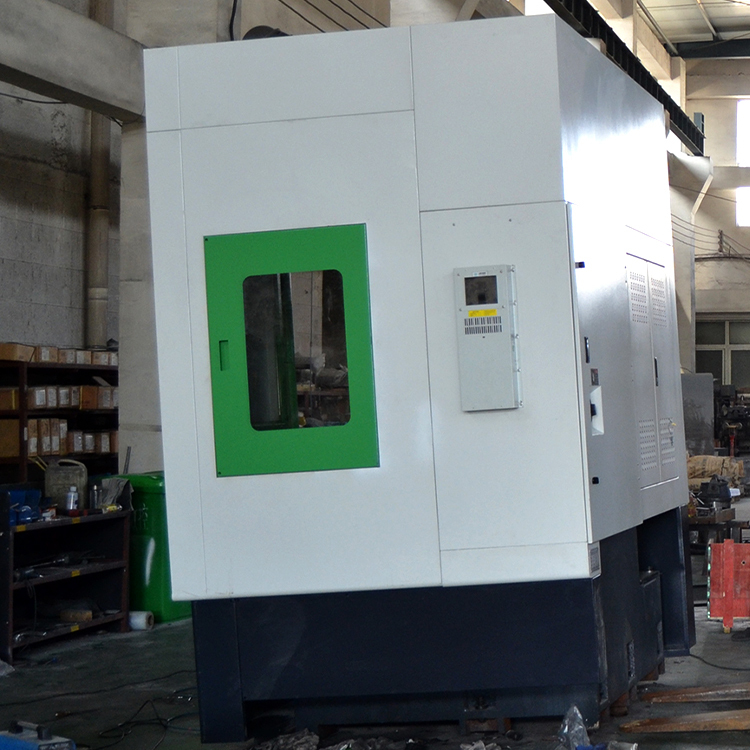

cnc vertical lathe machine VTC500 torno cnc vertical alloy wheel cnc lathe machine
reviews
Item specifics
- Type:
- VERTICAL
- Max. Length of Workpiece (mm):
- 500
- Machining Capacity:
- Heavy Duty
- Width of bed (mm):
- 330 mm
- Spindle Motor Power(kW):
- 11
- No. of Spindles:
- Single
- Number of Axes:
- 2
- Travel (X Axis)(mm):
- 450 mm
- Travel (Z Axis)(mm):
- 550 mm
- Positioning Accuracy (mm):
- ±0.01
- Repeatability (X/Y/Z) (mm):
- ±0.008
- Place of Origin:
- Shandong, China
- Dimension(L*W*H):
- 1900*1850*2350
- Brand Name:
- JIUCHENG
- Model Number:
- VTC500
- Voltage:
- Customer's Requirement
- Tool Post Stations:
- 8, 6, 4
- Weight (KG):
- 4200
- Warranty:
- 1 Year
- Key Selling Points:
- Automatic
- Machinery Test Report:
- Provided
- Video outgoing-inspection:
- Provided
- Warranty of core components:
- 1.5 years
- CNC or Not:
- CNC
- Color:
- Customer's Requirement
- After-sales service provided:
- Engineers available to service overseas
- Condition:
- New
- Spindle Bore(mm):
- 48
- Applicable Industries:
- Manufacturing Plant
- Showroom Location:
- Indonesia, India, Russia, UAE
- Core Components:
- Bearing, Engine
- Year:
- NEW
- Max. Spindle Speed (r.p.m):
- 1000 r.p.m
- Marketing Type:
- Hot Product
Description
SPECIFICATION | UNIT | VTC500 |
Swing over bed | mm | 550 |
Max. turning diameter | mm | 500 |
Max. turning length | mm | 450 |
Max. carrying weight | kg | 400 |
Max. spindle speed | rpm | 1000 |
Spindle nose | mm | A2-6 |
X axis travel | mm | 450 |
Z axis travel | mm | 550 |
X/Z axis rapid traverse | m/min | 10 |
Guide rail | - | Linear rail |
Main motor power | kw | 11 |
Voltage | V | 380 |
Weight | kg | 4200 |
Overall dimension | mm | 1900*1850*2350 |
Q: What is the minimum order quantity (MOQ)?
A: MOQ is one set. (Only some low cost machines will be more than 1 set)
Q: How can I choose the most suitable machines?
A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.
Q: What's the Payment Terms?
A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss.
Q: Where is your factory located?
A: Our factory is located in Tengzhou, Shandong province, China.
Q: What's the main products of your company?
A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.
Q: What is your market advantage?
A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service.
Q: What is the package? Is it suitable for shipment?
A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
