Description
2" OD Pneumatic Butterfly Valve
The pneumatic actuator's execution speed is relatively fast to achieve local control and remote control, which saves human resources and time to a large extent. It is mainly used for cutting, distributing, and changing the speed in the pipeline. Very suitable for water supply and drainage in water plants, power plants, steel mill smelting, papermaking, catering, and other systems.
-
Food-grade 304 Stainless Steel
-
Hassle-free Operation
-
Accurate Product Parameter
-
Excellent & Stable Performance
-
Applicable Medium
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

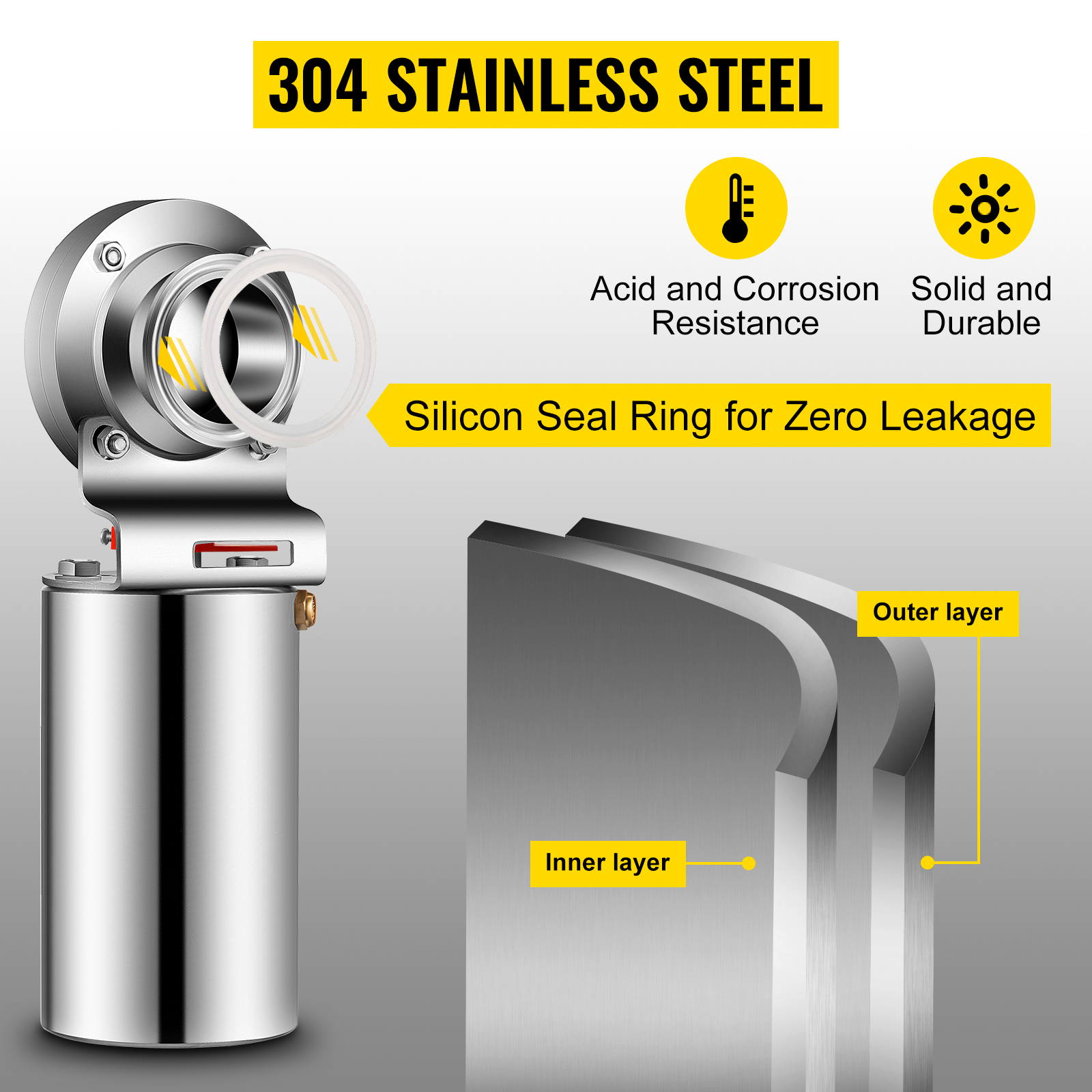

304 Stainless Steel
Compromise with 304 stainless steel; our pneumatic sanitary valve features the characteristic of corrosion resistance and acid resistance, high strength, and strong adaptability. A sealing silicone ring inside has good sealing performance and is not easy to leak.
Convenient to Use
Operation mode: pneumatic. Control mode: single-acting, automatic return. Working range: 0-90°. The sealing surface and the spherical surface are often closed, which is not easy to erode by the medium and can realize remote control.

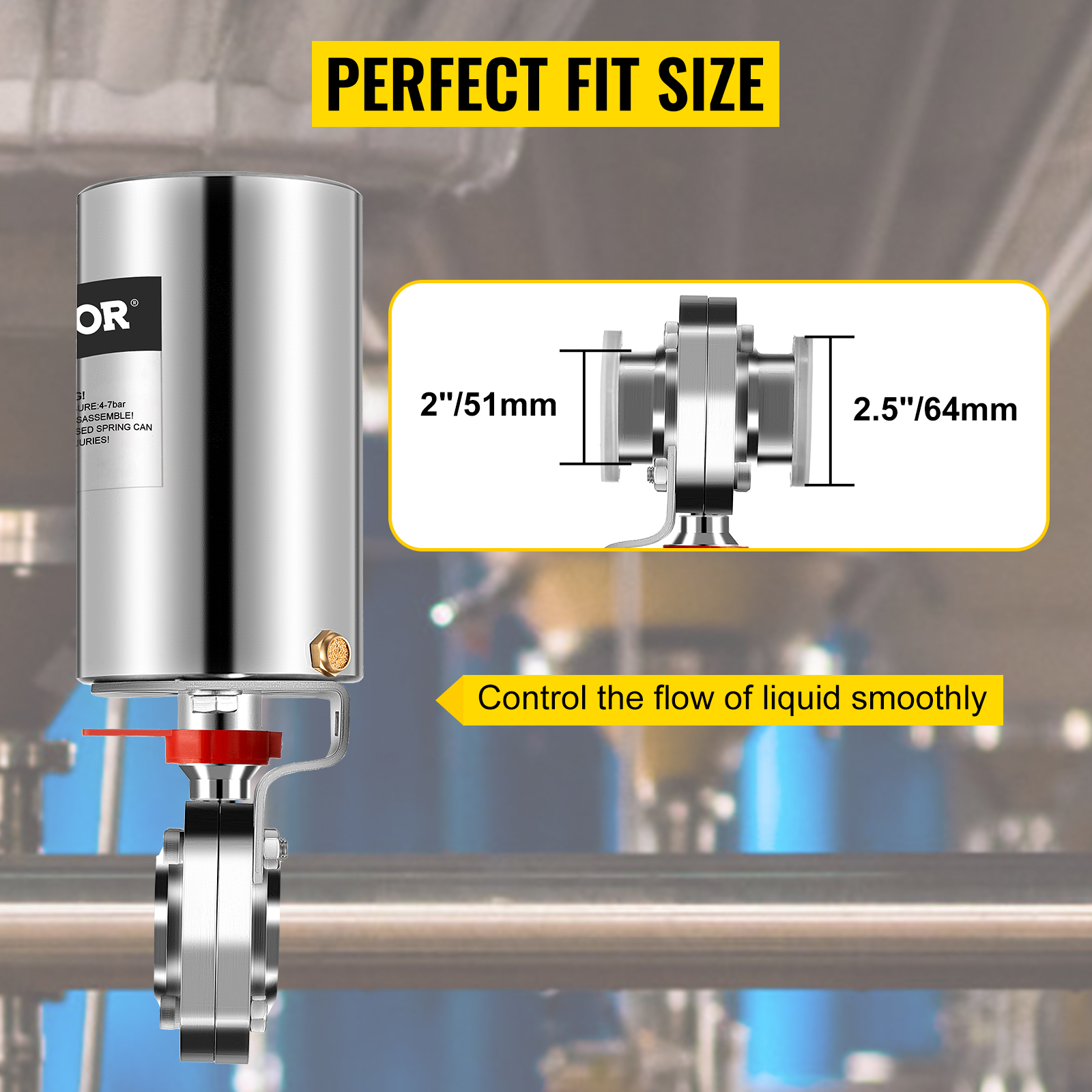

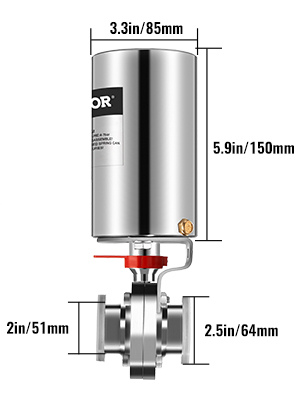

Perfect Fit Size
Dimensions: Tube outer diameter is 2 in / 51 mm; The size of the ferrule is 2.5 in / 64 mm. Our tri-clamp pneumatic valve is used to cut off, distribute, and change the flow direction of the medium in the pipeline to make the butterfly valve accumulate the least liquid and block the liquid outflow.

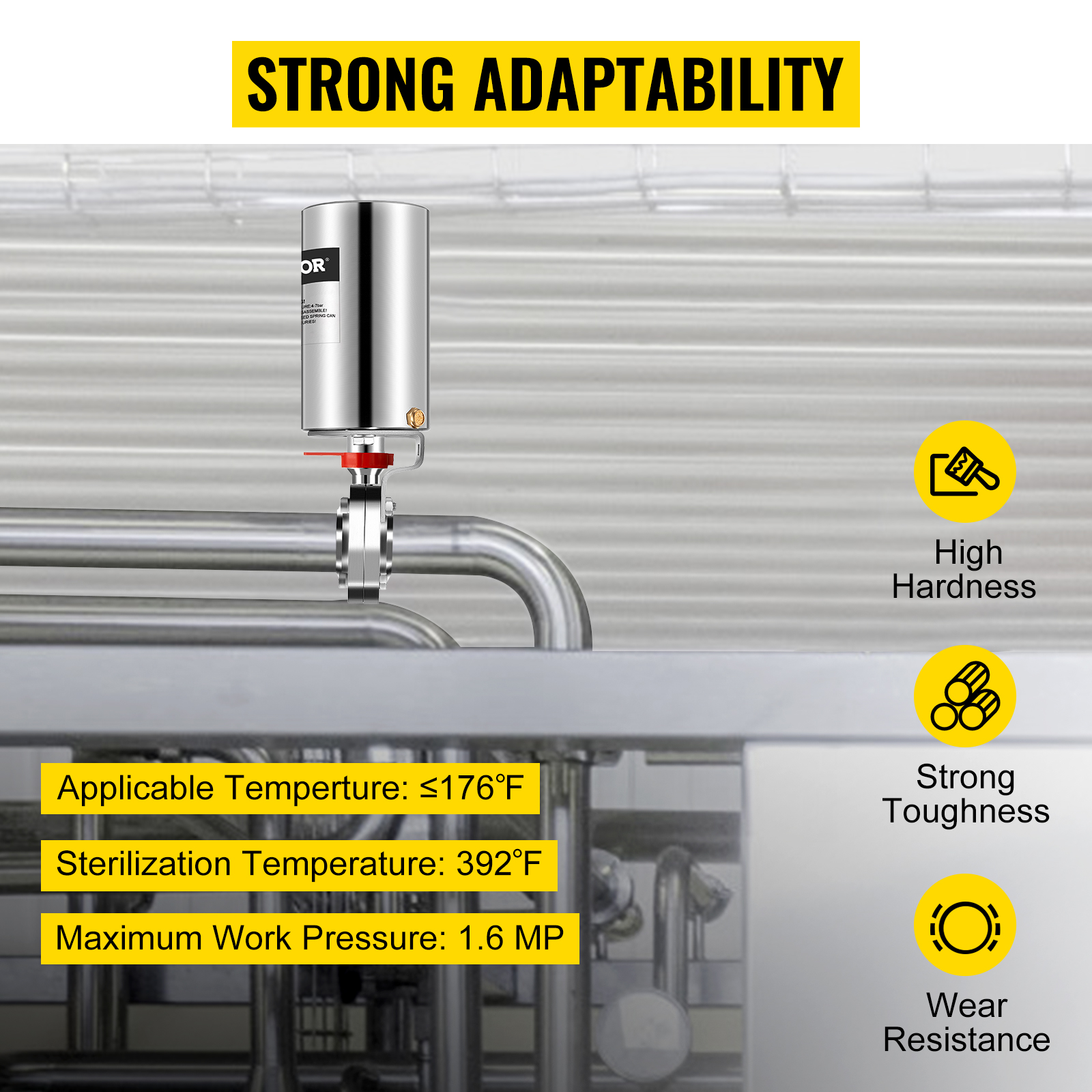

Strong Adaptability
Temperature grade: 14℉ to 176℉; Applicable temperature: ≤176℉; Sterilization temperature up to 392℉. The maximum pressure is 1.6mp. This tri-clamp pneumatic valve has strong toughness, high hardness, corrosion resistance and is designed for long service life.
Exquisite Detail Design
Simple structure, small size, lightweight, only 9.7 lbs / 4.4 kg, the upper air nozzle has good sealing performance, which can quickly connect air piping or pneumatic tools. The middle red pendulum needle is used to indicate the open or closed state of the butterfly valve, which serves as a reminder.
Wide Application
Pneumatic sanitary butterfly valves are very suitable for various applications in stainless steel piping systems. It is widely used in water, oil, air, food, pharmaceutical, beer beverage, mechanical equipment, automation equipment, and other fields.
Specifications
-
Model: VV-SPJDF-QD51
-
Material: 304 Stainless Steel
-
Tube Outer Diameter: 2 in / 51 mm
-
Ferrule Size: 2.5 in / 64 mm
-
Operating Range: 0-90°
-
Work Pressure: 0-1.6MPa / 232 psi
-
Applicable Temperature: ≤176℉ / ≤ 80℃
-
Temperature Class: 14℉- 176℉ / -10℃ - 80℃
-
Sterilization Temperature: 392 °F / 200 ℃
-
Operation: Pneumatic
-
Connection: Clamp
-
Control Method: Single Acting, Automatic Return Position
-
Weight: 9.7 lbs / 4.4 kg

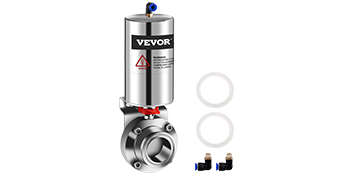

Package Content
-
1 x Pneumatic butterfly valve
-
2 x Silicone Gaskets
-
2 x Air Nozzle
-
1 x Instruction
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
2" OD Pneumatic Butterfly Valve
The pneumatic actuator's execution speed is relatively fast to achieve local control and remote control, which saves human resources and time to a large extent. It is mainly used for cutting, distributing, and changing the speed in the pipeline. Very suitable for water supply and drainage in water plants, power plants, steel mill smelting, papermaking, catering, and other systems.
- Food-grade 304 Stainless Steel
- Hassle-free Operation
- Accurate Product Parameter
- Excellent & Stable Performance
- Applicable Medium
304 Stainless Steel
Compromise with 304 stainless steel; our pneumatic sanitary valve features the characteristic of corrosion resistance and acid resistance, high strength, and strong adaptability. A sealing silicone ring inside has good sealing performance and is not easy to leak.
Convenient to Use
Operation mode: pneumatic. Control mode: single-acting, automatic return. Working range: 0-90°. The sealing surface and the spherical surface are often closed, which is not easy to erode by the medium and can realize remote control.
Perfect Fit Size
Dimensions: Tube outer diameter is 2 in / 51 mm; The size of the ferrule is 2.5 in / 64 mm. Our tri-clamp pneumatic valve is used to cut off, distribute, and change the flow direction of the medium in the pipeline to make the butterfly valve accumulate the least liquid and block the liquid outflow.
Strong Adaptability
Temperature grade: 14℉ to 176℉; Applicable temperature: ≤176℉; Sterilization temperature up to 392℉. The maximum pressure is 1.6mp. This tri-clamp pneumatic valve has strong toughness, high hardness, corrosion resistance and is designed for long service life.
Exquisite Detail Design
Simple structure, small size, lightweight, only 9.7 lbs / 4.4 kg, the upper air nozzle has good sealing performance, which can quickly connect air piping or pneumatic tools. The middle red pendulum needle is used to indicate the open or closed state of the butterfly valve, which serves as a reminder.
Wide Application
Pneumatic sanitary butterfly valves are very suitable for various applications in stainless steel piping systems. It is widely used in water, oil, air, food, pharmaceutical, beer beverage, mechanical equipment, automation equipment, and other fields.
Package Content
- 1 x Pneumatic butterfly valve
- 2 x Silicone Gaskets
- 2 x Air Nozzle
- 1 x Instruction
