VEVOR K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines
reviews
Description

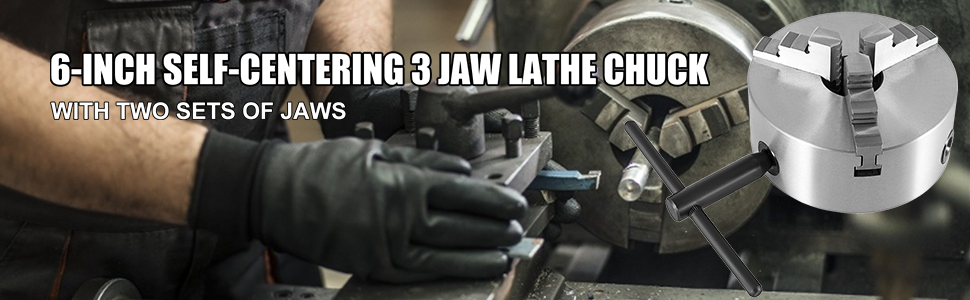

6.3-inch 3 Jaw Lathe Chuck
Self Centering & 0.002" High Accuracy & with Two Sets of Jaws
-
This versatile chuck is made of high-quality hardened steel, compression resistance and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.12" / 3 mm - 6.3" / 160 mm. Of course, this chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
-
Quality Material
-
High Precision
-
2 Sets of Jaws
-
Fast Clamping Speed
-
High Adaptability
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Hardened Steel
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
Precision Bevel Gear
When the bevel gear is pulled with a wrench, the thread wood lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.
Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.
Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
Specifications
-
Material: Hardened Steel
-
Model: K11-160
-
Jaw: 3 Jaw
-
High Precision: ≤0.002" / 0.05 mm
-
Color: Silver
-
Mounting Thread: 3-M8
-
Lathe Chuck
-
Size: 6.3" / 160 mm
-
Outside Diameter: 6.3" / 160 mm
-
Bolt Circle Diameter: 5.59" / 142 mm
-
Center Thru Hole Diameter: 1.77" / 45 mm
-
Chuck Body Thickness: 2.56" / 65 mm
-
Internal Jaw Clamping Range (A-A1): 0.12"-2.17" / 3-55 mm
-
Internal Jaw Jamming Range (B-B1): 1.97"-6.3" / 50-160 mm
-
External Jaw Clamping Range (C-C1): 2.17"-5.7" / 55-145 mm
-
Accuracy: 0.002" / 0.051 mm
-
Item Weight: 18.4 lbs / 8.35 kg
-
Package Dimensions (L x W x H): 8.3" x 8.3" x 6.7" / 21 x 21 x 17 cm
Package Content
-
1 x 6.3" / 160 mm Lathe Chuck Body
-
3 x Internal Jaws
-
3 x External Jaws
-
3 x Mounting Bolts
-
1 x Chuck Key
