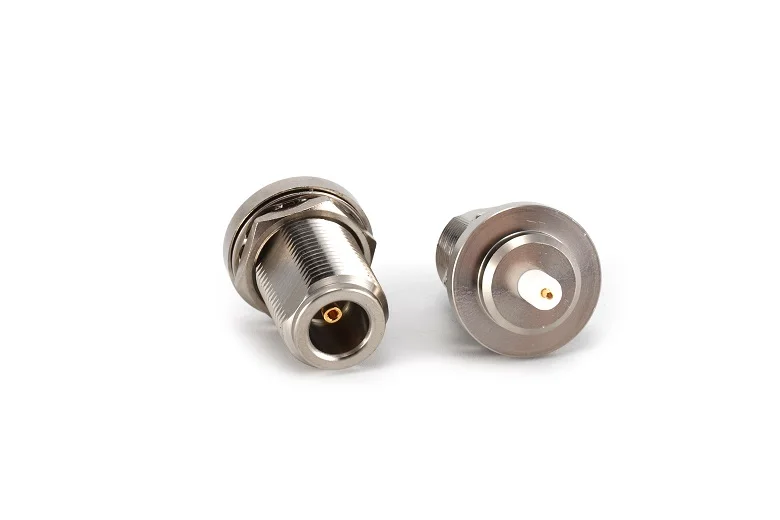

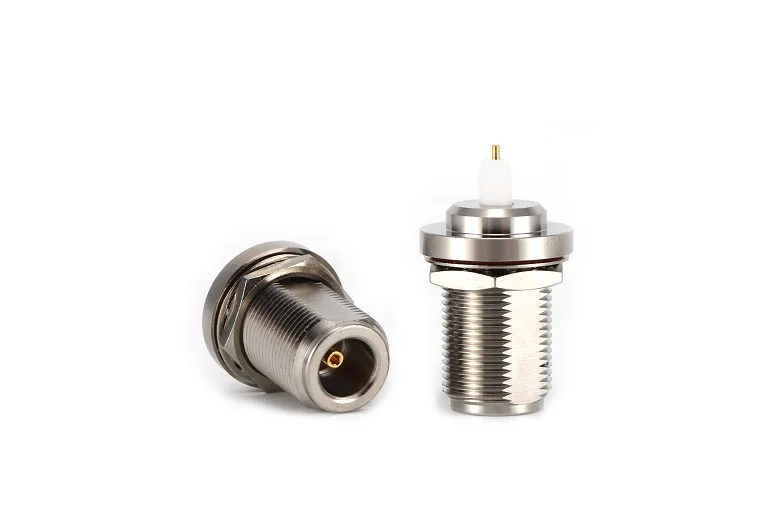

TRL Series N female bulkhead RF Connector Terminal N-KYD1
reviews
Item specifics
- Model Number:
- N-KYD1
- Type:
- RF Connector, N Microwave Connectors
- Brand:
- TRL
- Application:
- Aerospace, Telecom
- Interface Type:
- screw-coupling
- Packaging:
- Bulk
- Supplier Type:
- Original manufacturer, ODM
- Place of Origin:
- Jiangsu, China
- Color:
- silvery
- Material:
- brass,Nickel-plated
- Media Available:
- www.rf-connector-china.com
- Brand Name:
- Micro RF Coaxial Connectors
- Features:
- Frequency up to DC~11GHz
- Pin or Socket:
- Pin
- Number of Positions:
- 1
- Mounting Type:
- flange
- Connector Usage:
- Micro RF Coaxial Connector
- Voltage - Rated:
- 1500V
- Shell Material:
- brass,Nickel-plated
- Voltage Rating:
- 1500V
- Impedance:
- 50Ohm
- Frequency - Max:
- 11GHz
- Housing Finish:
- brass,Nickel-plated
- Voltage:
- 1500V
- Approved Countries:
- China
Description
Product Paramenters

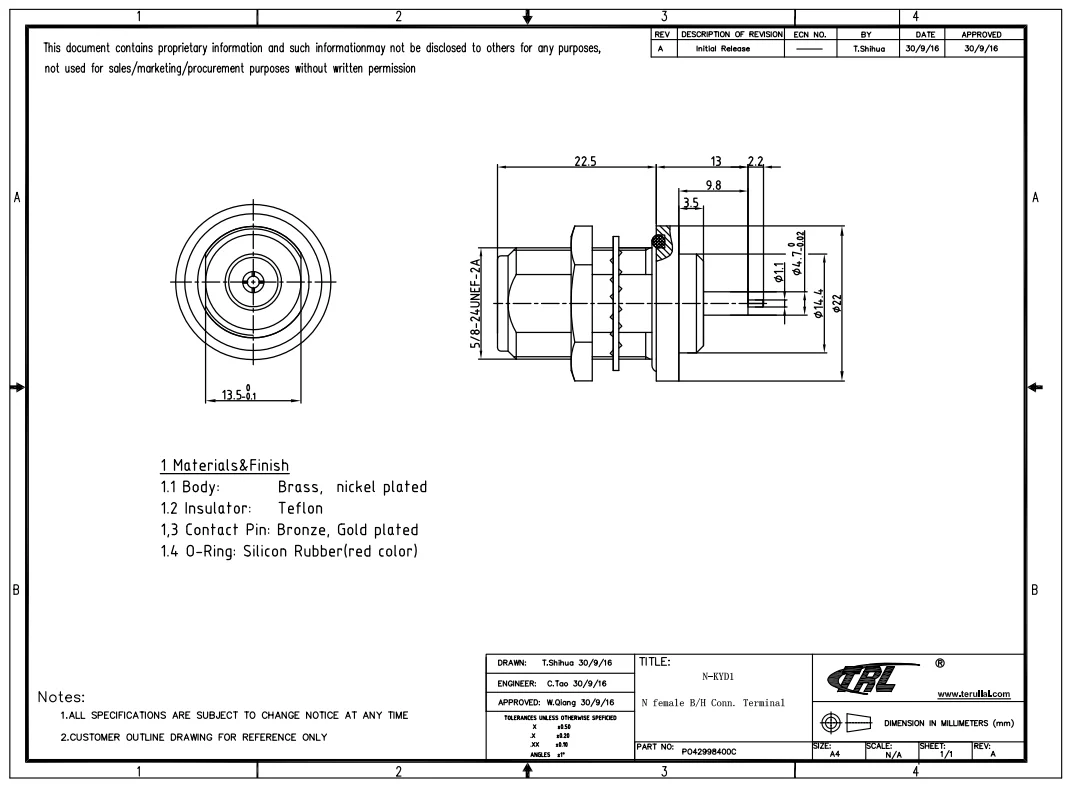

Specification
N connector is one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. It has great performance of vibration-proof, high reliablity and super electrical properties, widely used in communication applications.Concerning the cable links, clamp, crimp and solder types are all available.
Teruilai P/N: N-KYD1
RoHS Certificate: Compliant
Frequency range | DC-11GHZ | Durability (matings) | ≧500 | ||
Dieletric withstanding voltage | 1500V | Temperature range | -45℃ to +125℃ | ||
Characteristic impedance | 50Ω | Connector parts | Material | Plating | |
Insulation Resistance | ≧5000MΩ | Body | Brass | Nickel-plated | |
.Center conductor | ≦1.0mΩ | Pin contacts | Bronze | Gold plated | |
.Outer conductor | ≦0.2mΩ | Insulators | Teflon | ||
VSWR | ≦1.2 | O-ring | Silicon rubber | ||
Contact Resistance | |||||

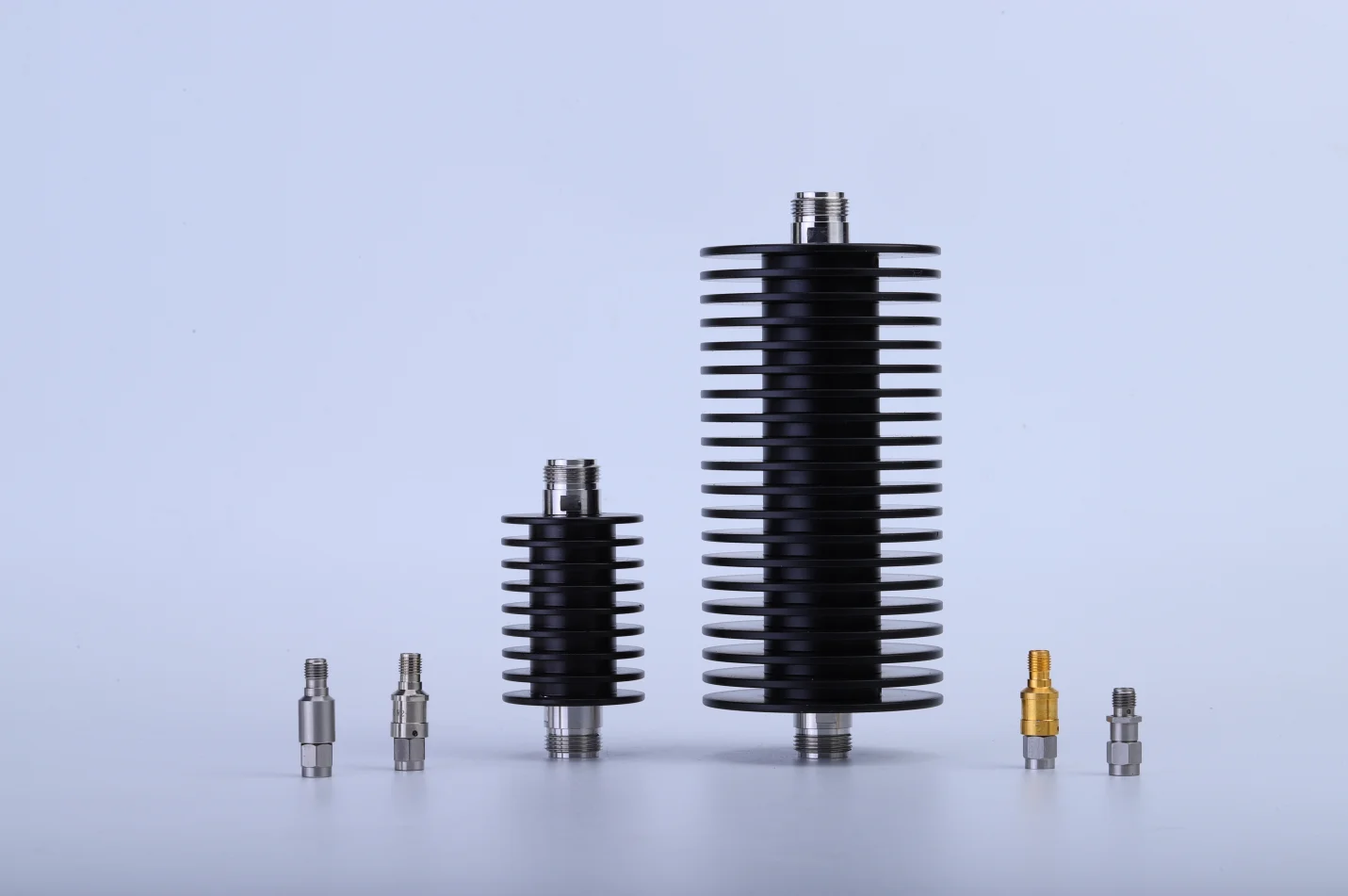

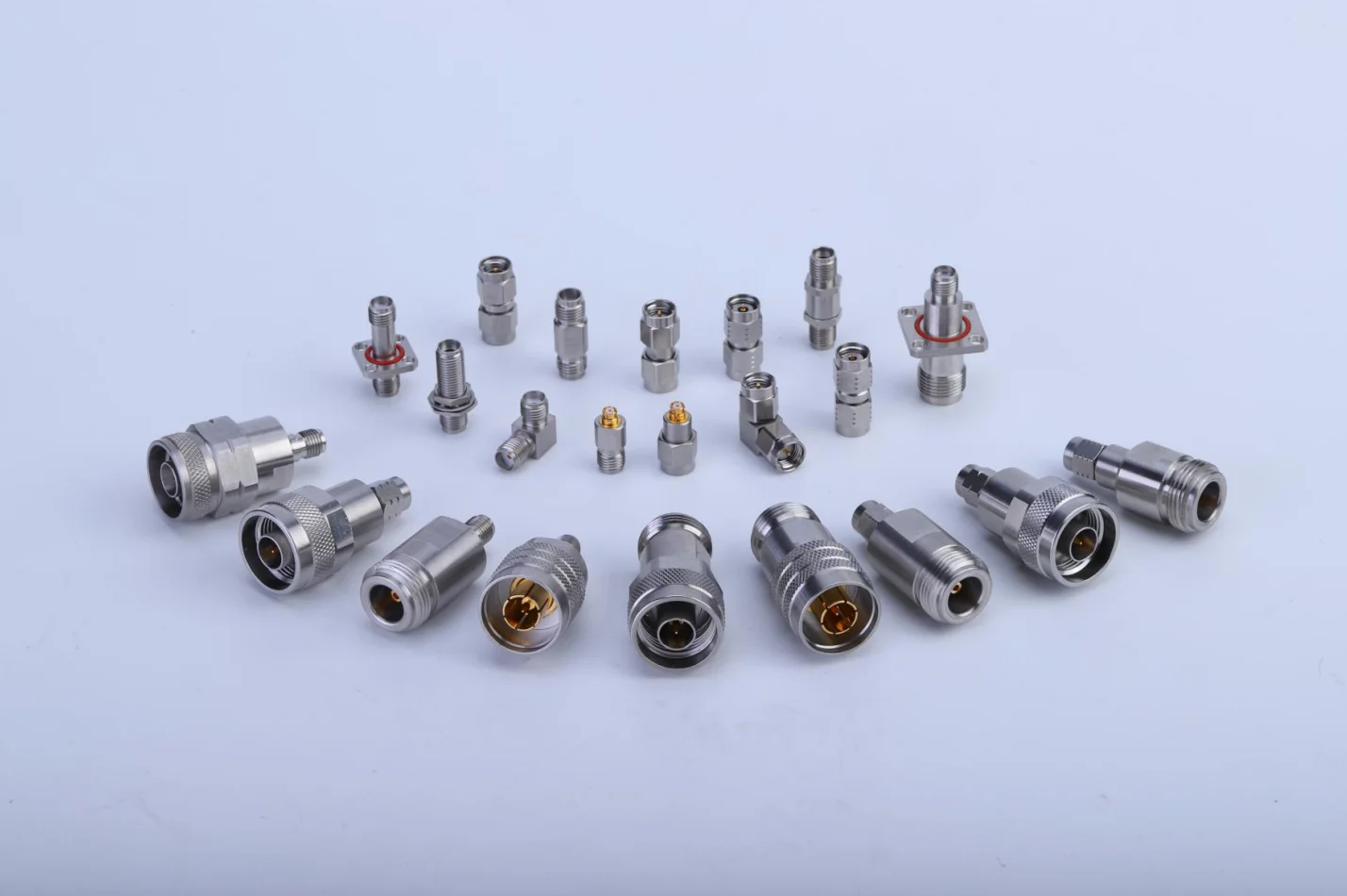

Recommend Products

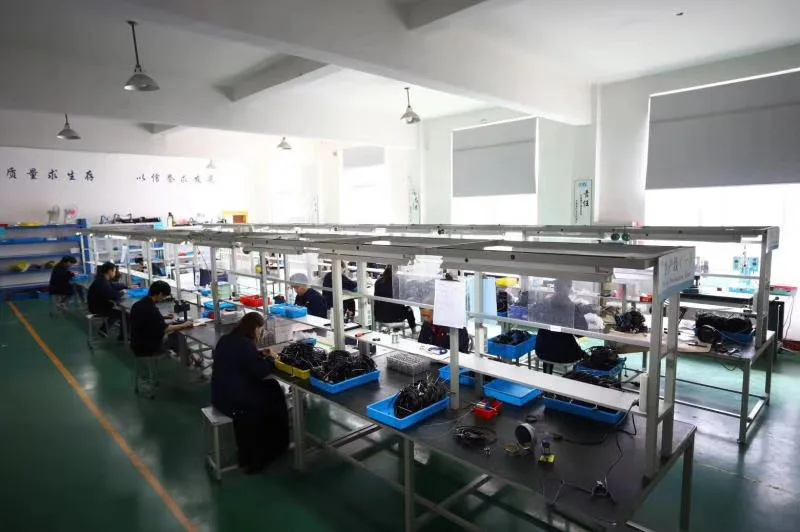

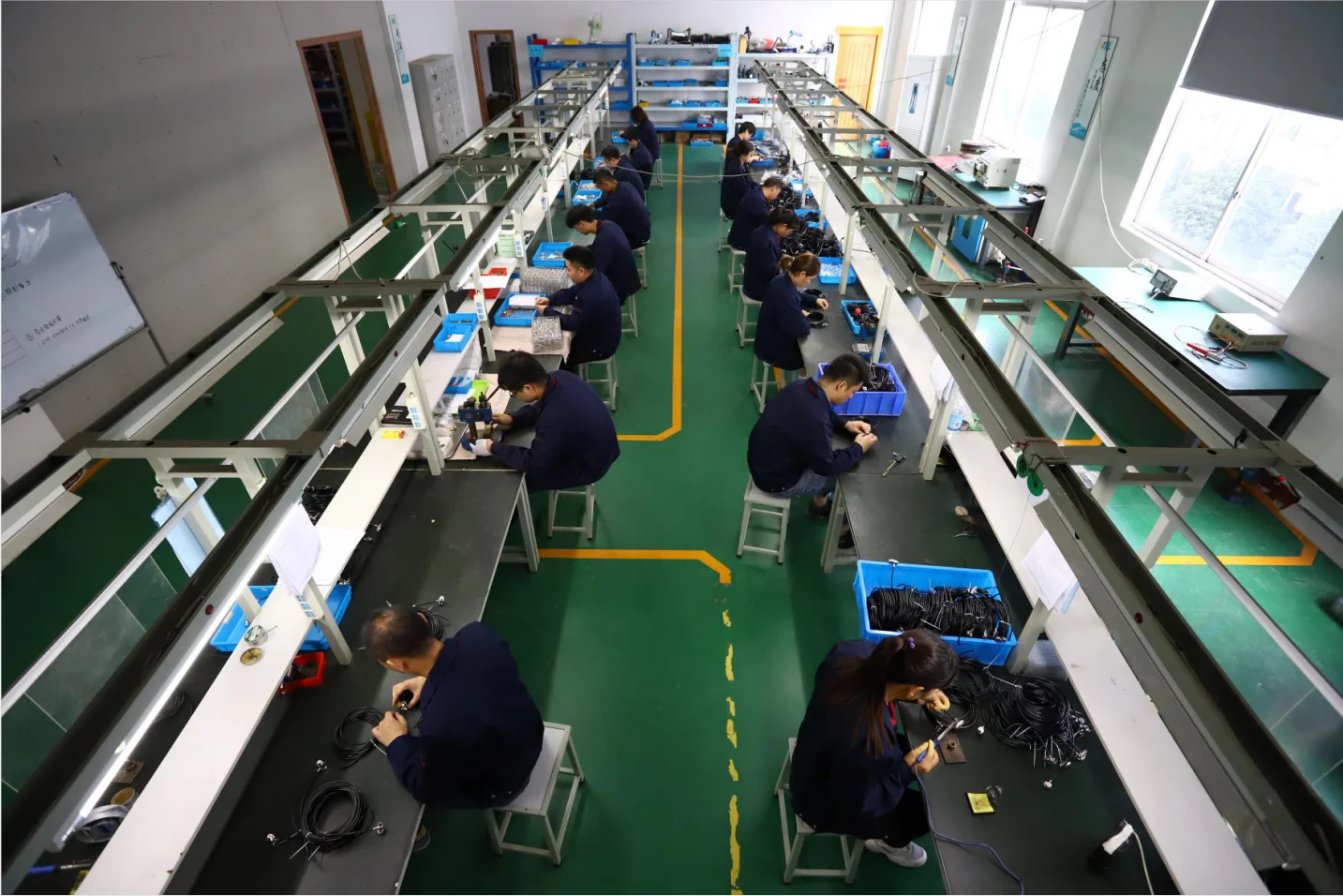

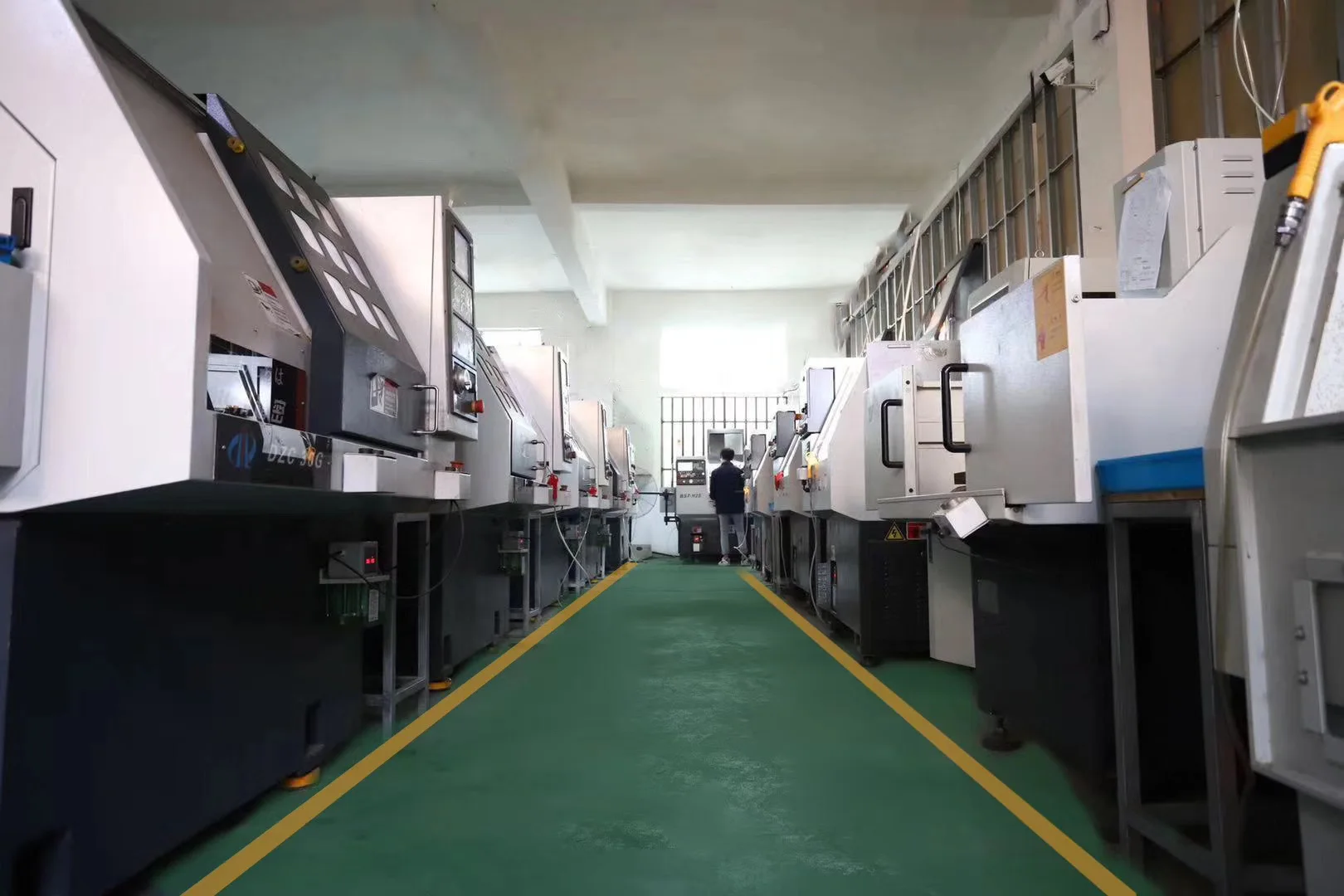

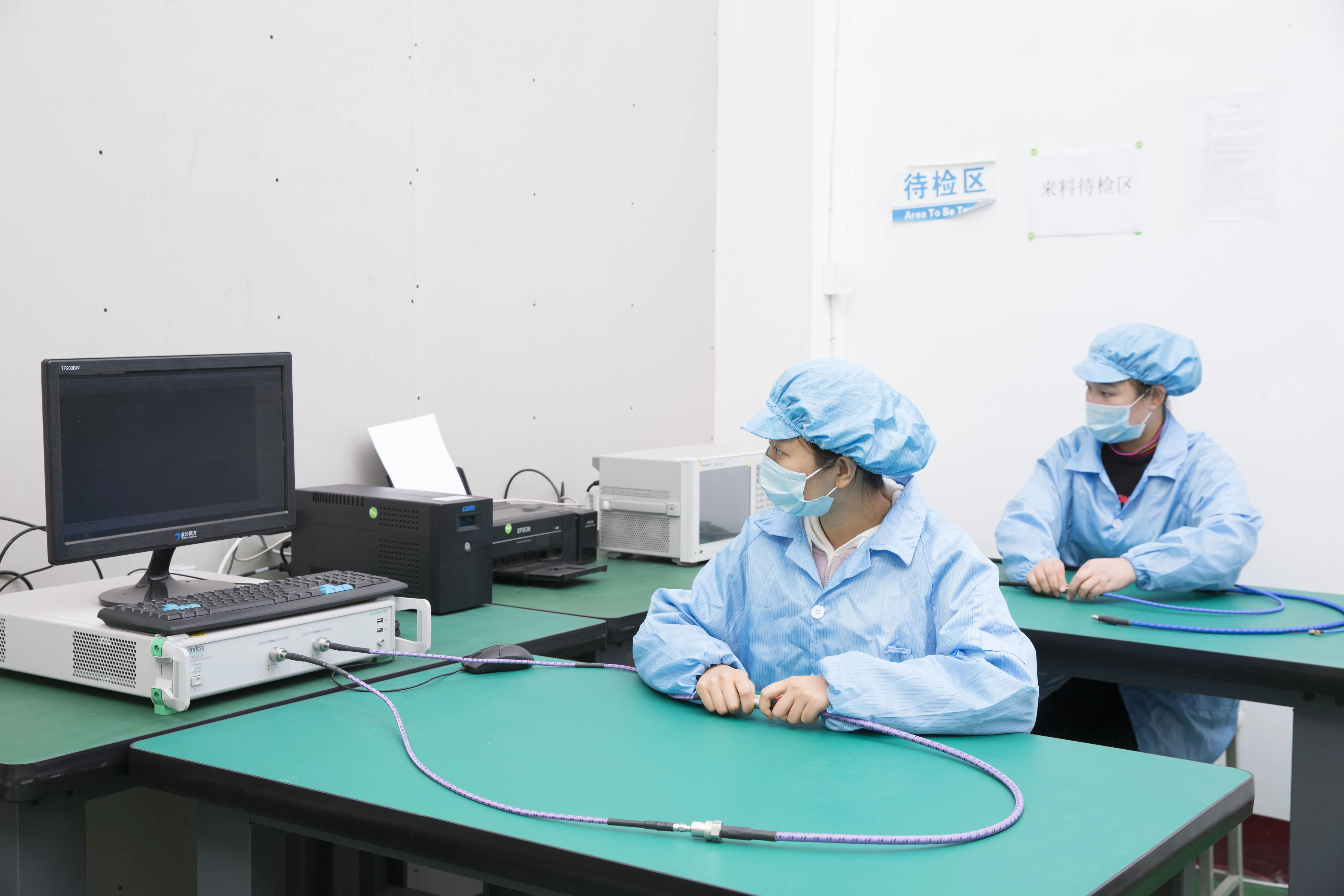

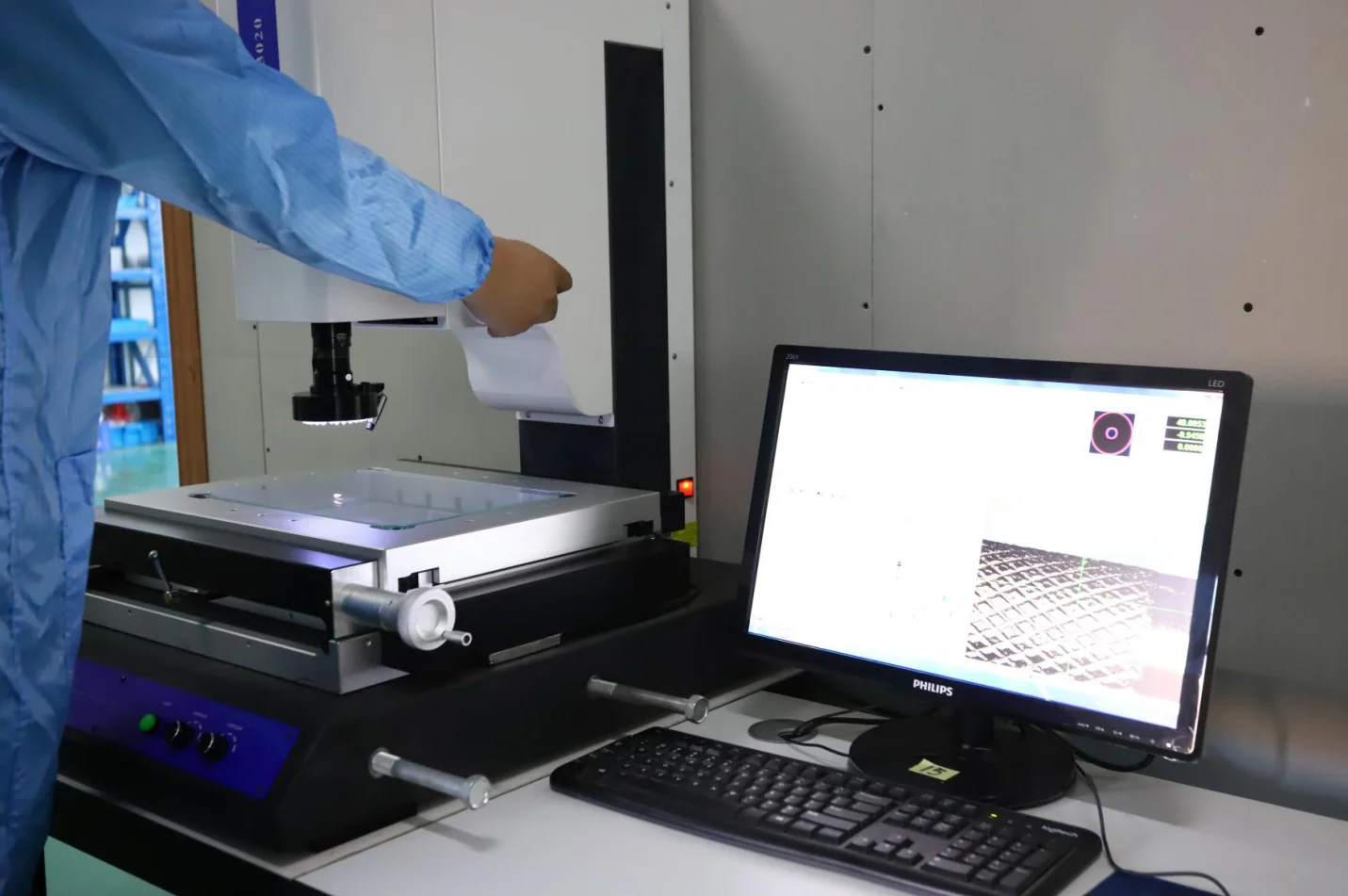

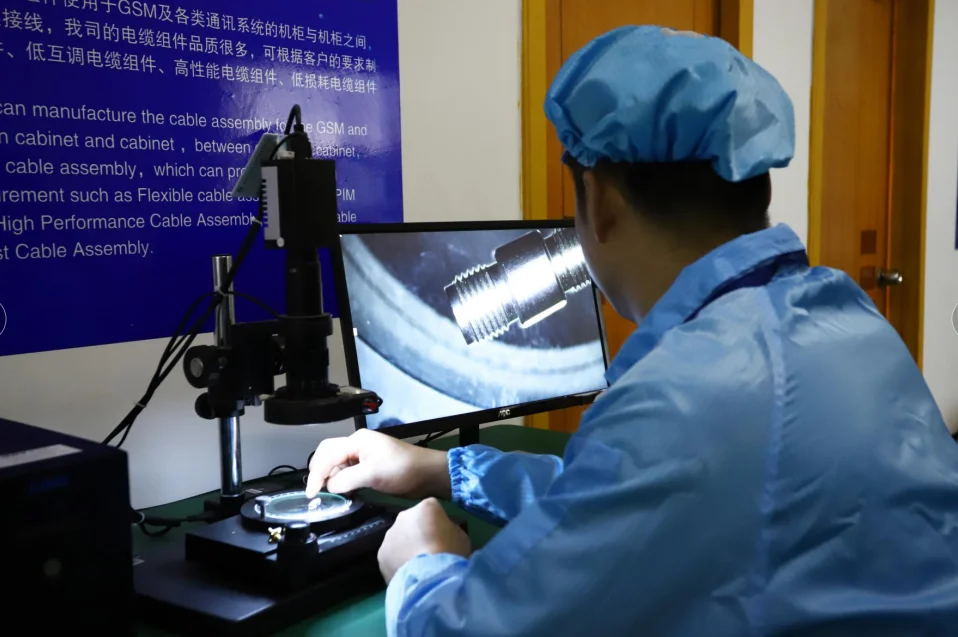

Company Profile

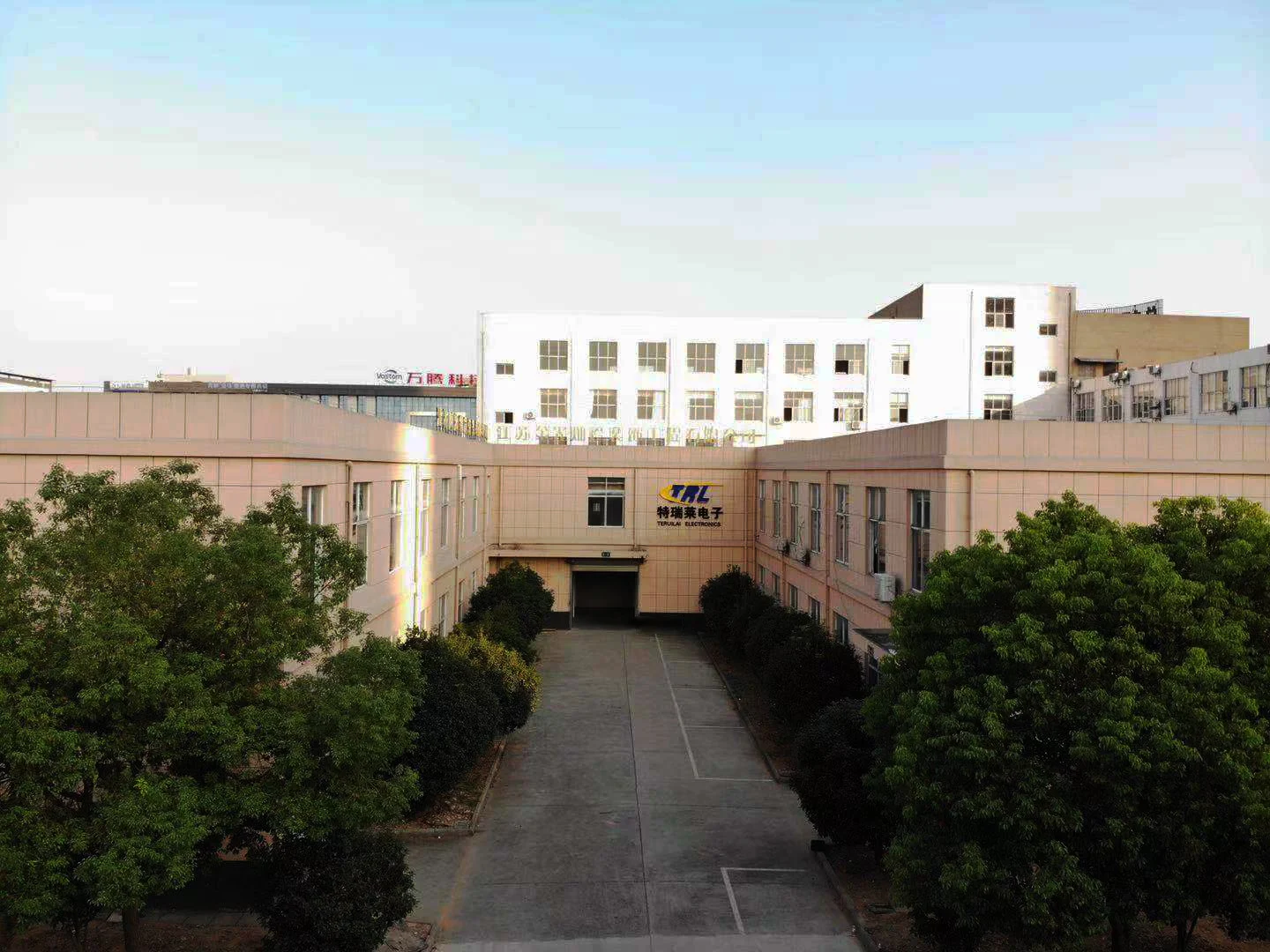

Teruilai
an well-known designer & manufacturer based in Danyang city
Danyang Teruilai Electronics Co.,Ltd(TRL for short) is an well-known designer & manufacturer based in Danyang city,Jiangsu.Province, China. We Provide our customers with excellent RF Connectors & cable Assembly , RF Microwave-Passive components andvalued-added services that meet or exceed our customer’s expectations.
TRL was initially established in Xi’an City, China since 2008, by the development of our company, we invested a new factory inDanyang City, Jiangsu Province in 2013, which mainly produces RF-Microwave connectors,and Cable Assemblies especially forMicrowave Connectors such as 1.85mm, 2.4mm, 2.92mm 3.5mm etc. With so many years of experience and continuous improvement, we havegained very good reputation from our customers in different markets such as Rohde & Schwarz in Germany, Mini Circuit in the USAand ST in Singapore, etc.
an well-known designer & manufacturer based in Danyang city
Danyang Teruilai Electronics Co.,Ltd(TRL for short) is an well-known designer & manufacturer based in Danyang city,Jiangsu.Province, China. We Provide our customers with excellent RF Connectors & cable Assembly , RF Microwave-Passive components andvalued-added services that meet or exceed our customer’s expectations.
TRL was initially established in Xi’an City, China since 2008, by the development of our company, we invested a new factory inDanyang City, Jiangsu Province in 2013, which mainly produces RF-Microwave connectors,and Cable Assemblies especially forMicrowave Connectors such as 1.85mm, 2.4mm, 2.92mm 3.5mm etc. With so many years of experience and continuous improvement, we havegained very good reputation from our customers in different markets such as Rohde & Schwarz in Germany, Mini Circuit in the USAand ST in Singapore, etc.
Events

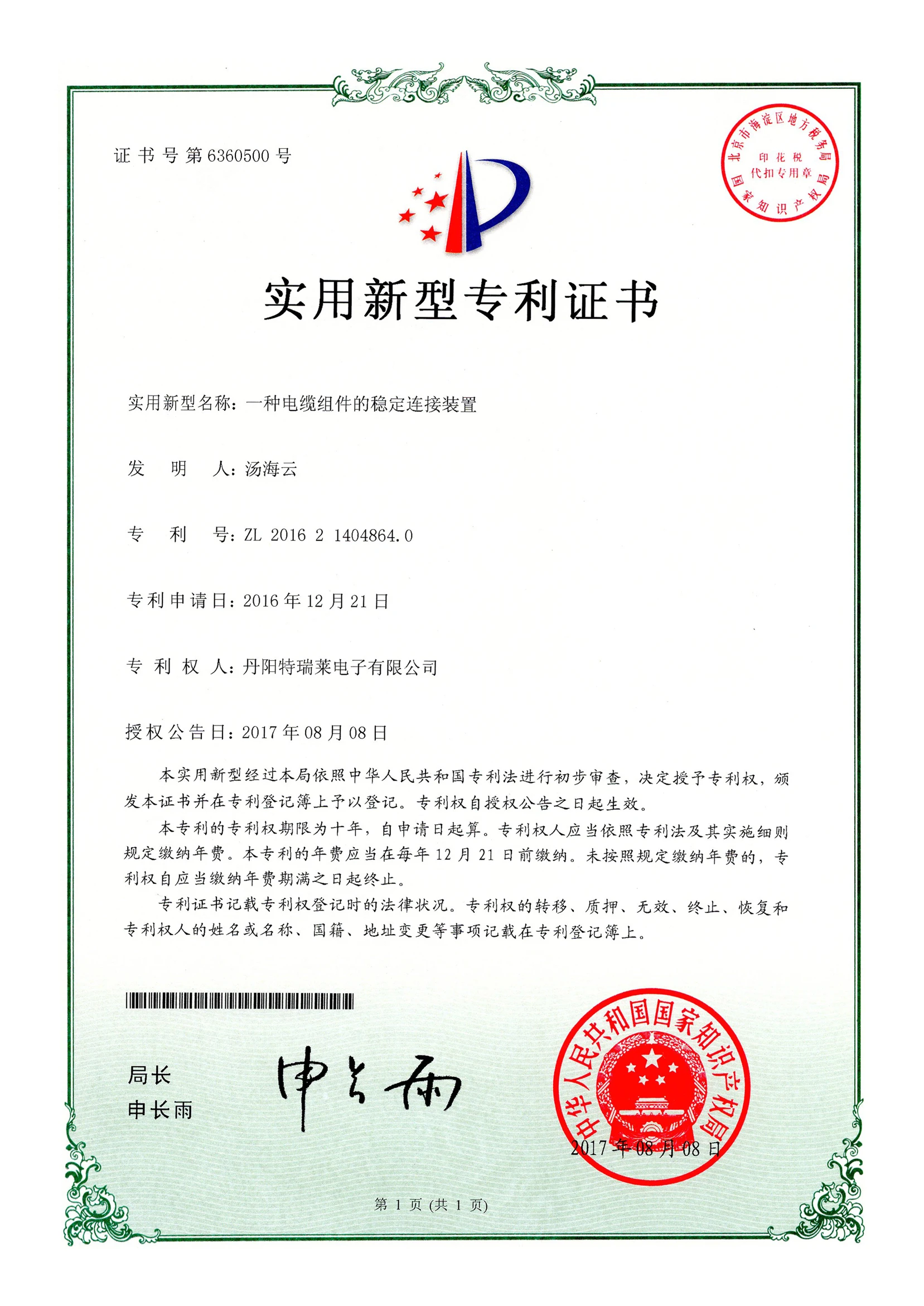

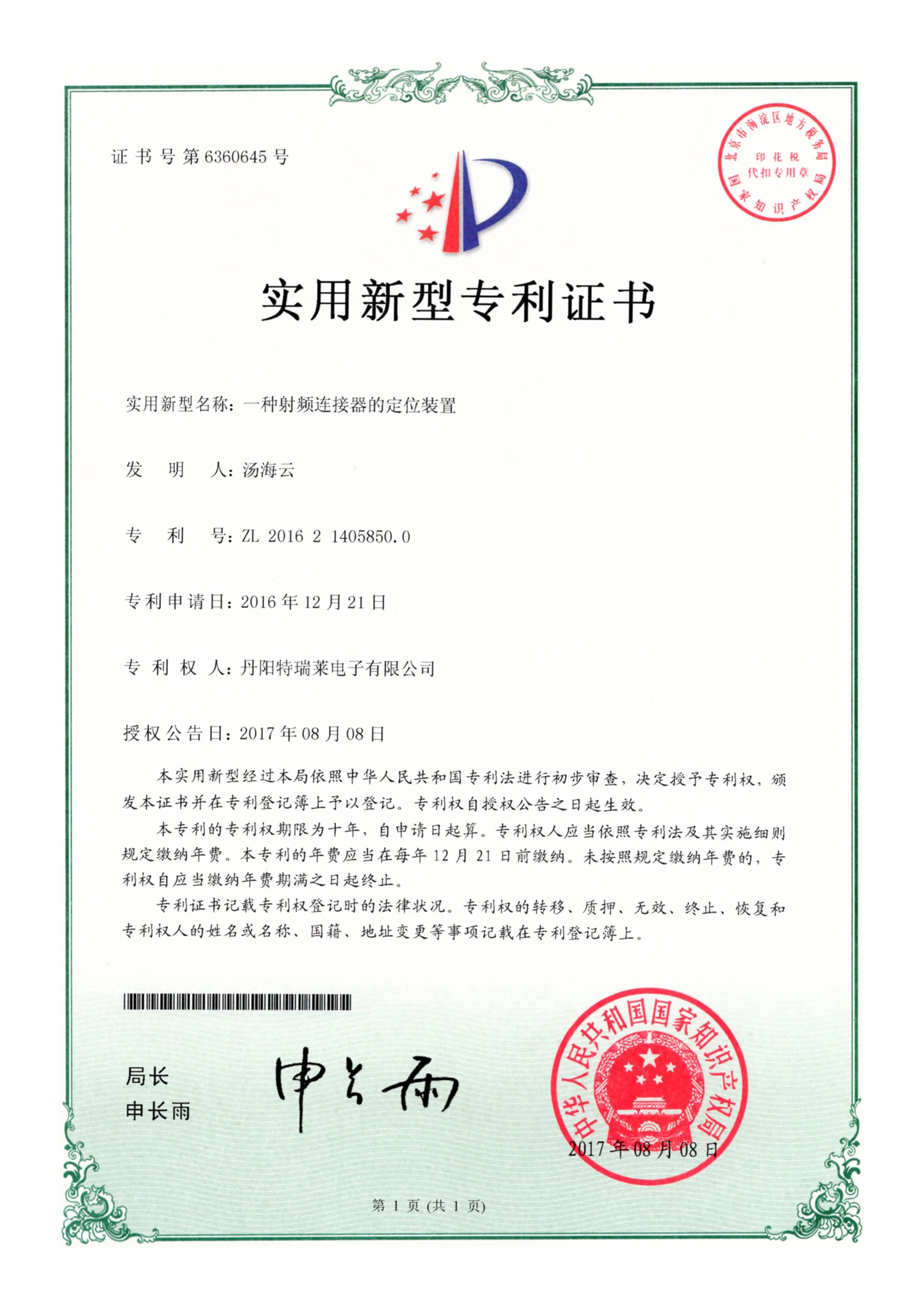

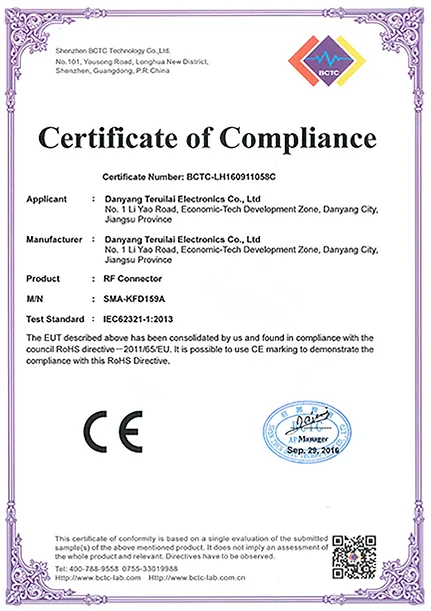

Qualification honor

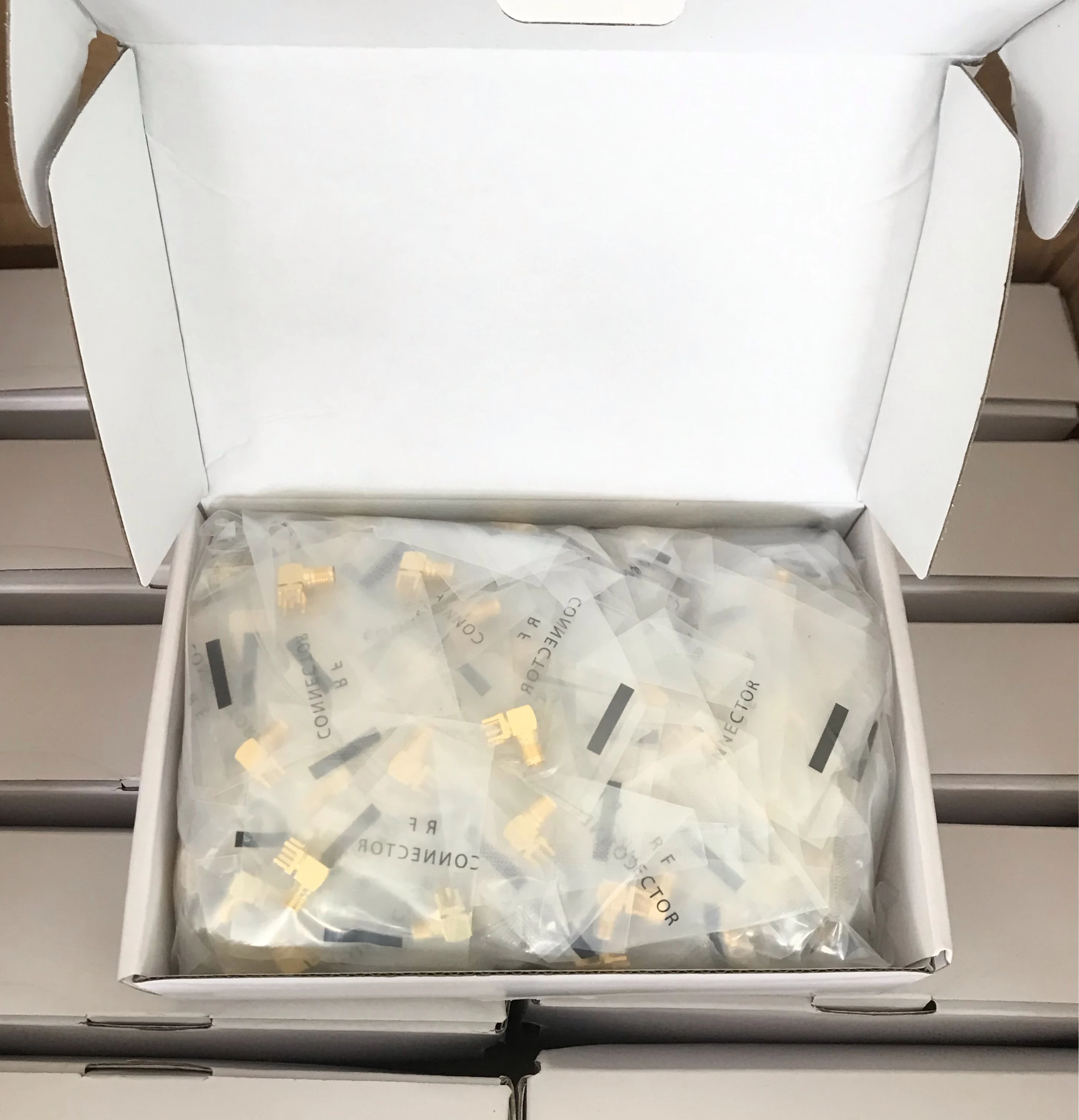

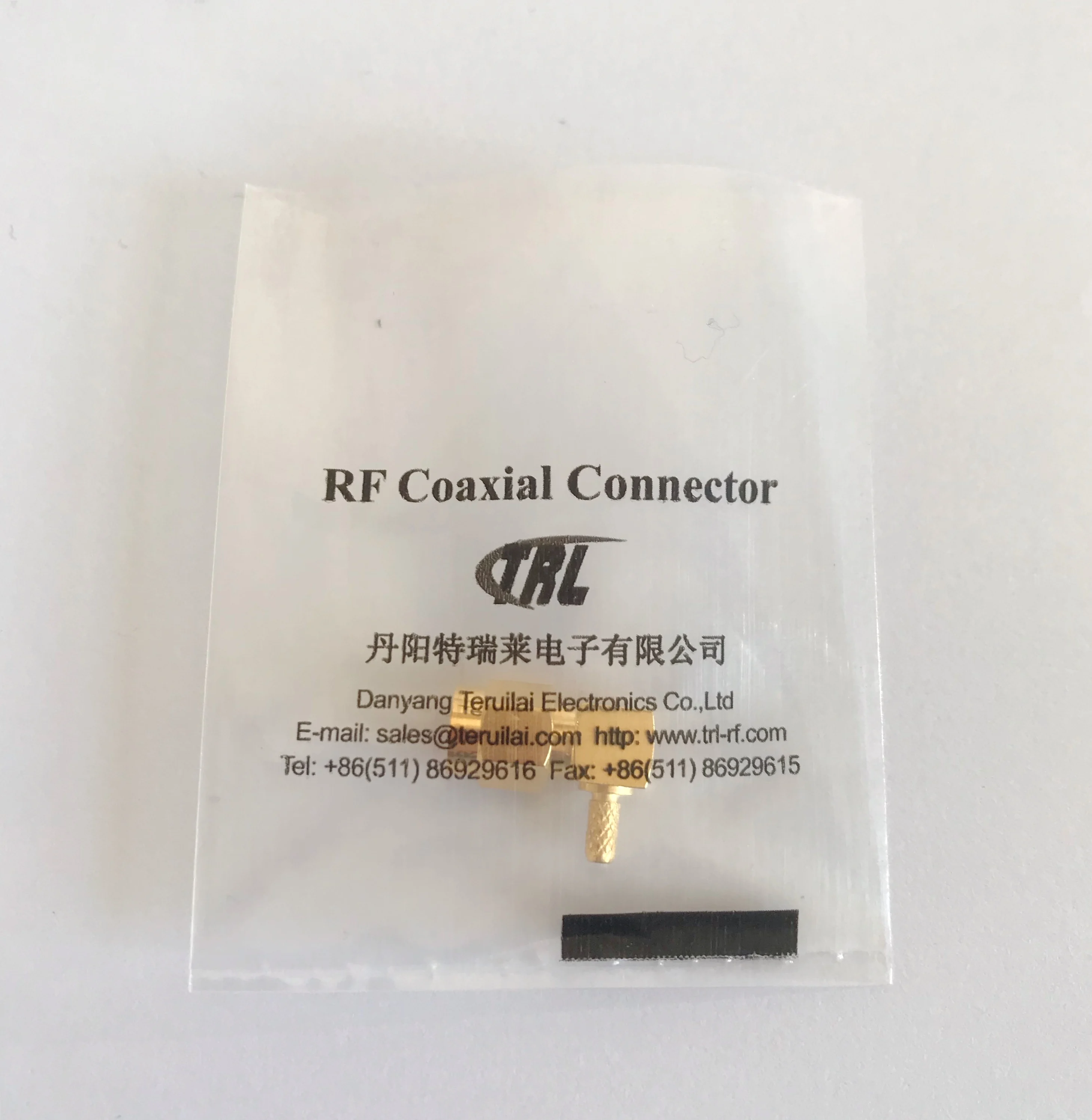

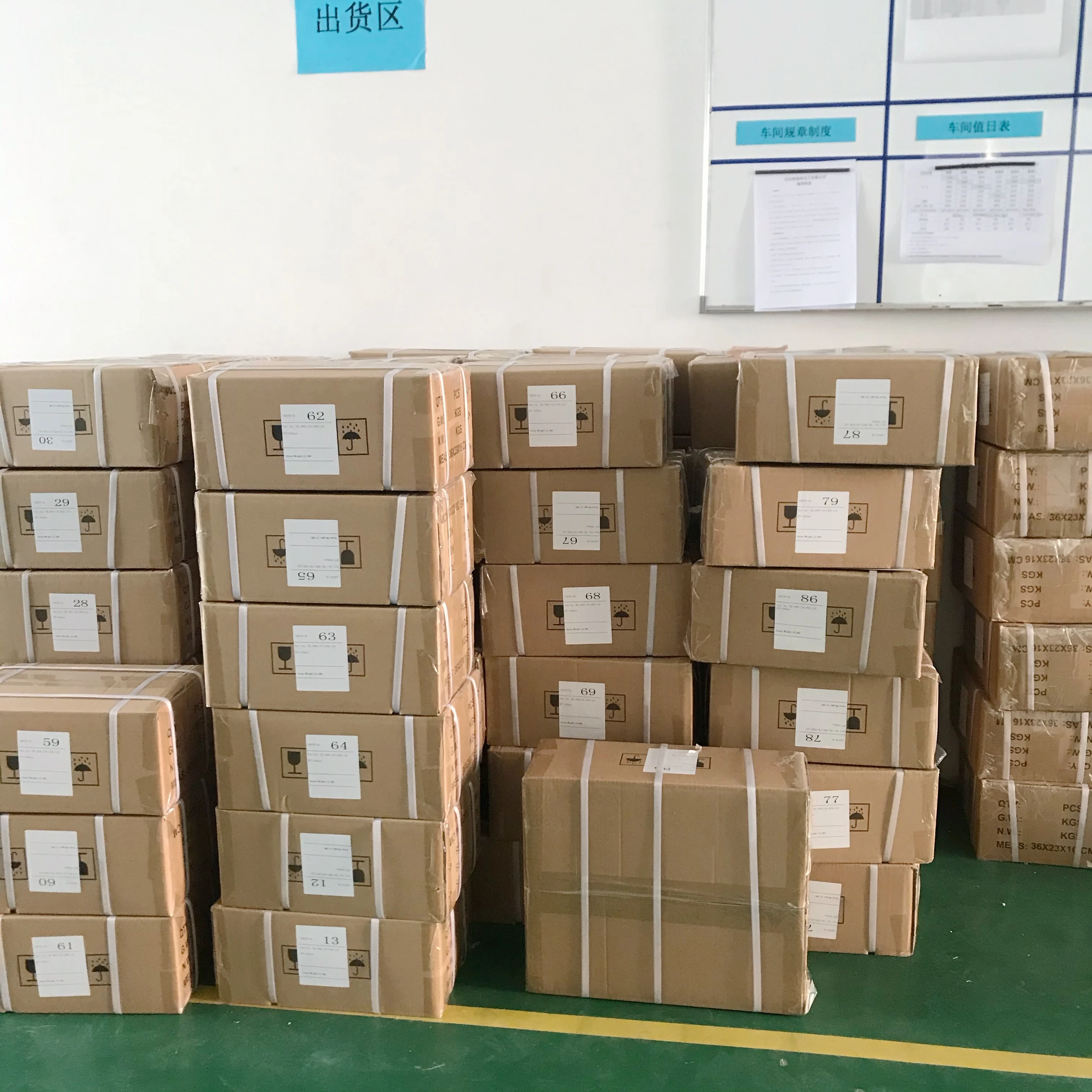

Packing & Delivery
TRL will provide standard export packaging, while satisfying the freight requirements when exporting, as much as
possible to protect the products from shipping damage.
possible to protect the products from shipping damage.
FAQ
Q1: Are you a factory or a trade company?
We are a factory specialized in Developing, manufacturing RF& Microwave Connectors.
Q2: How long is your delivery time(lead time)?
Within 7 days if we have stock, otherwise it will take about 20days if no stock
Q3: It is ok to print our logo on your products?
Yes, we can.
Q4: Can you send a sample for us to develop?
Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.
Q5: Can your company accept customize?
Welcome OEM & ODM.
