Outdoor Ip65 Waterproof Smd Solar Led Street Light
reviews
Item specifics
- Place of Origin:
- Fujian, China
- Brand Name:
- OEM
- Model Number:
- HF-TY-030
- Application:
- ROAD
- Color Temperature(CCT):
- 6000K (Daylight Alert), 2700-6500
- IP Rating:
- IP65
- Beam Angle(°):
- 120
- CRI (Ra>):
- 75
- Input Voltage(V):
- DC12V
- Warranty(Year):
- 2-Year
- Color Rendering Index(Ra):
- 75
- Certification:
- ce
- Power Supply:
- AC
- Light Source:
- LED
- Lighting solutions service:
- Lighting and circuitry design, OEM
- Lifespan (hours):
- 50000
- Working Time (hours):
- 50000
- Product name:
- Waterproof solar street light
- Lamp Body Material:
- Dia-casting Aluminum
- Optional Power:
- 10W, 20W, 30W, 50W, 100W, 200W, 300W
- LED:
- SMD
- Working time:
- 6-12 Hours/day
- Charging time:
- 4-6 Hours/day
- Working Mode:
- Light control
- LED Chip:
- Epistar
- Battery:
- Li-ion Battery
Description
Outdoor Ip65 Waterproof Smd Solar Led Street Light
Products Description
Model | HF-TY-030 10W | HF-TY-030 20W | HF-TY-030 30W | HF-TY-030 50W | HF-TY-030 100W | HF-TY-030 200W | HF-TY-030 300W | ||||||

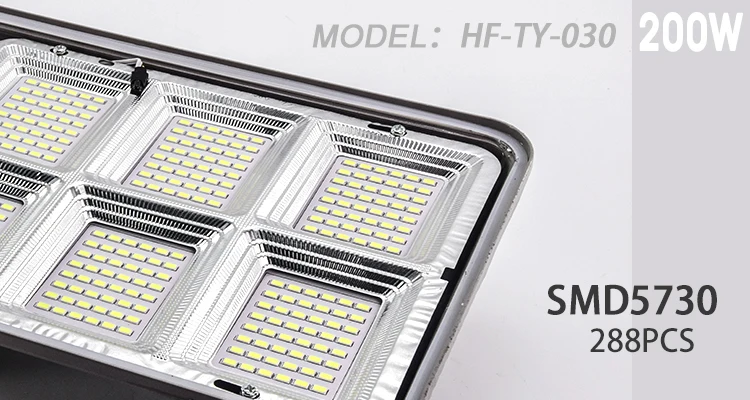

Light source | SMD5730 30PCS | SMD5730 45PCS | SMD5730 54PCS | SMD5730 96PCS | SMD5730 196PCS | SMD5730 288PCS | SMD5730 360PCS | ||||||
Material | aluminum+glass | ||||||||||||

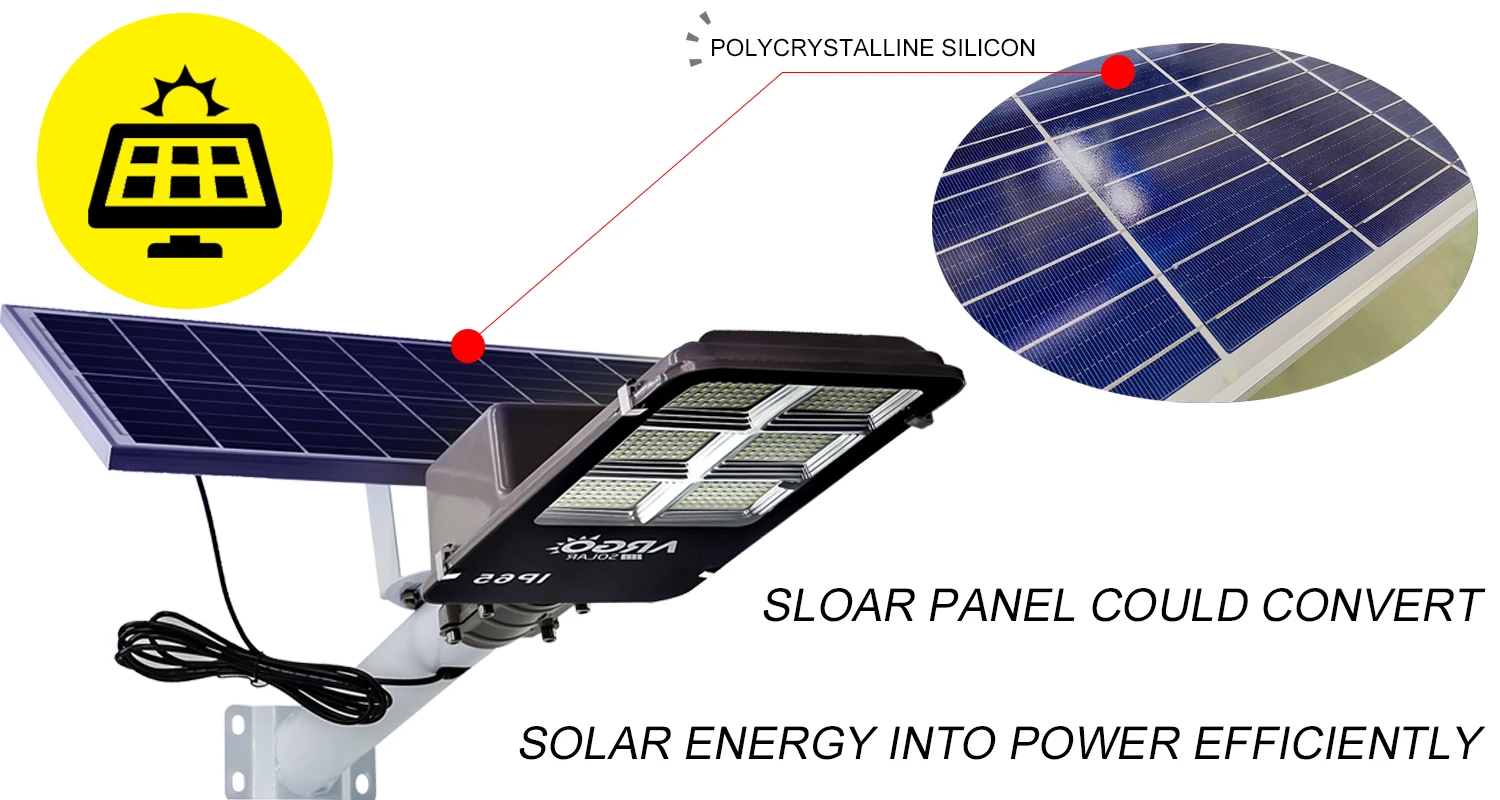

Solar panel | Polycrystalline silicon | ||||||||||||
Charging time | 5H | ||||||||||||
Continue working time | 6-12H | ||||||||||||
Rechargeable battery | 3.2v 5000mA | 3.2v 6000mA | 3.2v 10000mA | 3.2v 12000mA | 6.4v 15000mA | 6.4v 18000mA | 6.4v 24000mA | ||||||
Power factor | ＞0.9 | ||||||||||||
Luminous Flux | 60lm/pcs | 60lm/pcs | |||||||||||
Beam angle | 150° | ||||||||||||
CRI | ＞75 | ||||||||||||
Operating Temperature | -40℃~50℃ | ||||||||||||
Size L*W | 350*100 mm | 390*140 mm | 390*140 mm | 500*200 mm | 500*200 mm | 500*200 mm | 500*200 mm | ||||||
Solar panel size (L*W*H) | 185*285 *18mm | 348*203*18mm | 350*350*18mm | 350*450* 18mm | 350*650* 30mm | 670*430* 30mm | 670*540*30mm | ||||||
Details Images

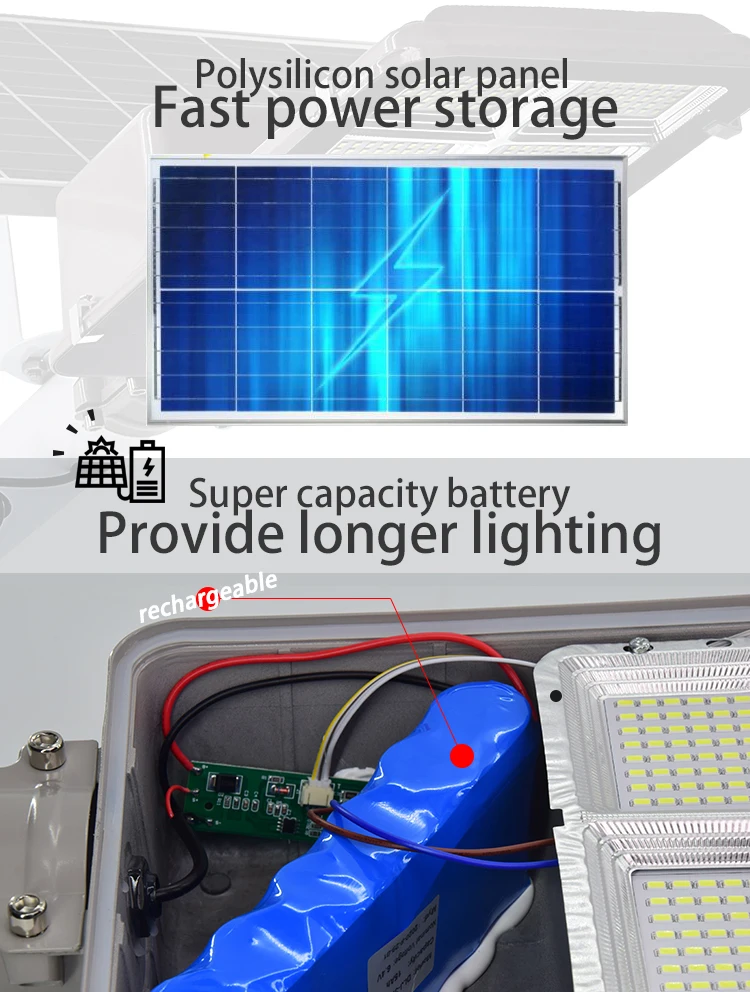

The battery will store the power from the solar panel.

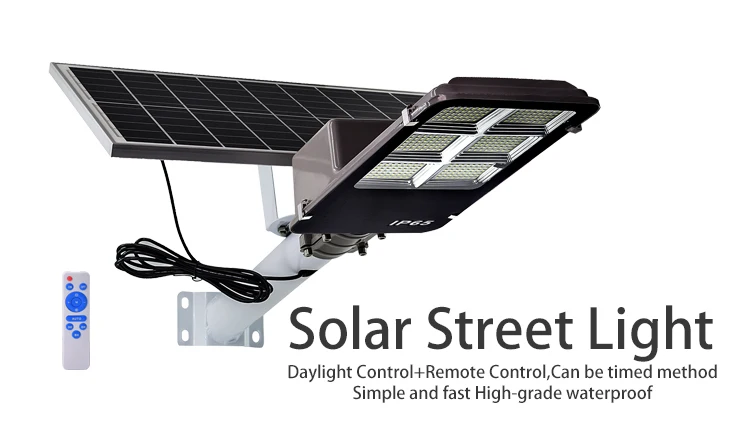

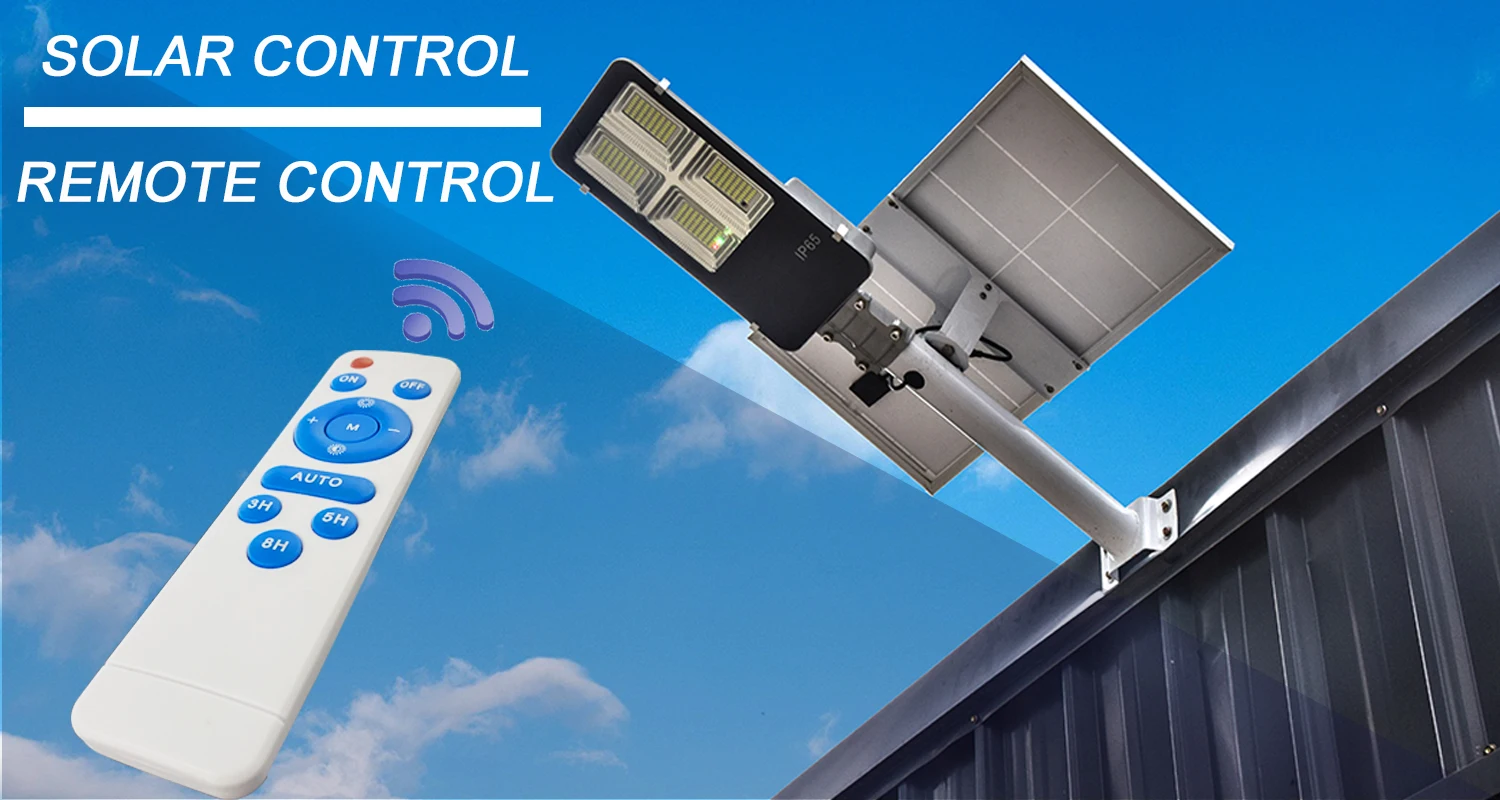

Solar control and remote control are available.

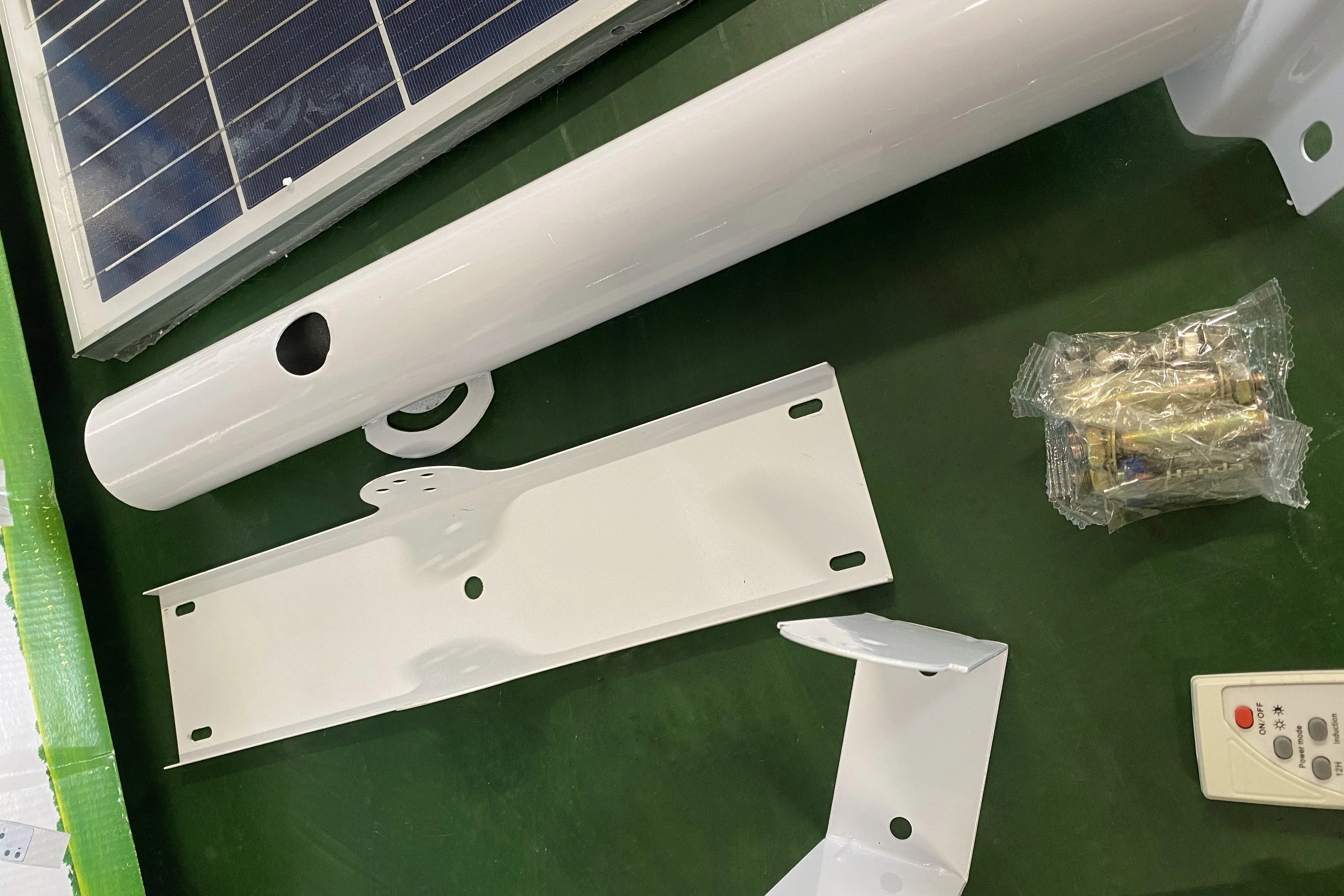

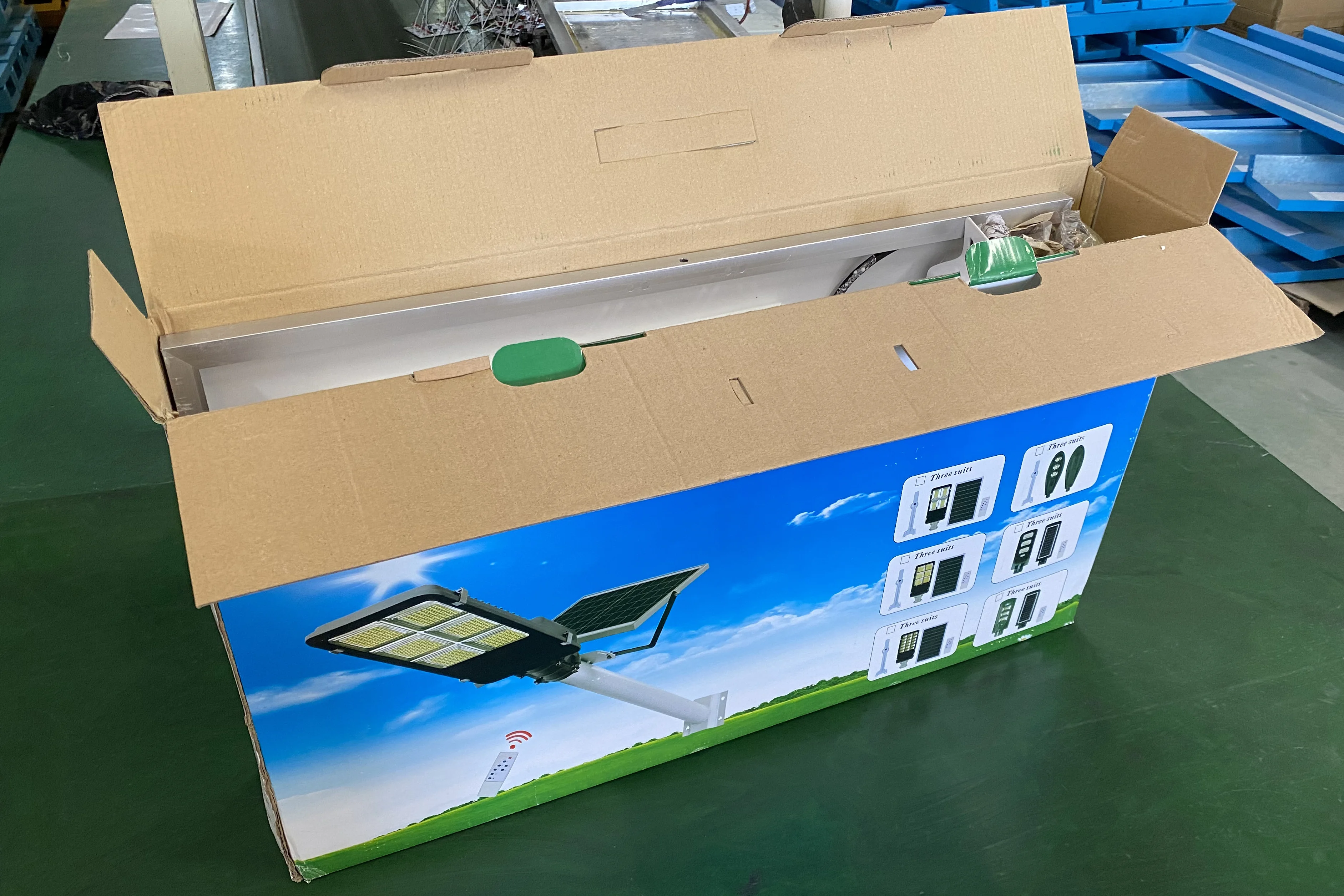

Shipment&Packing&Loading

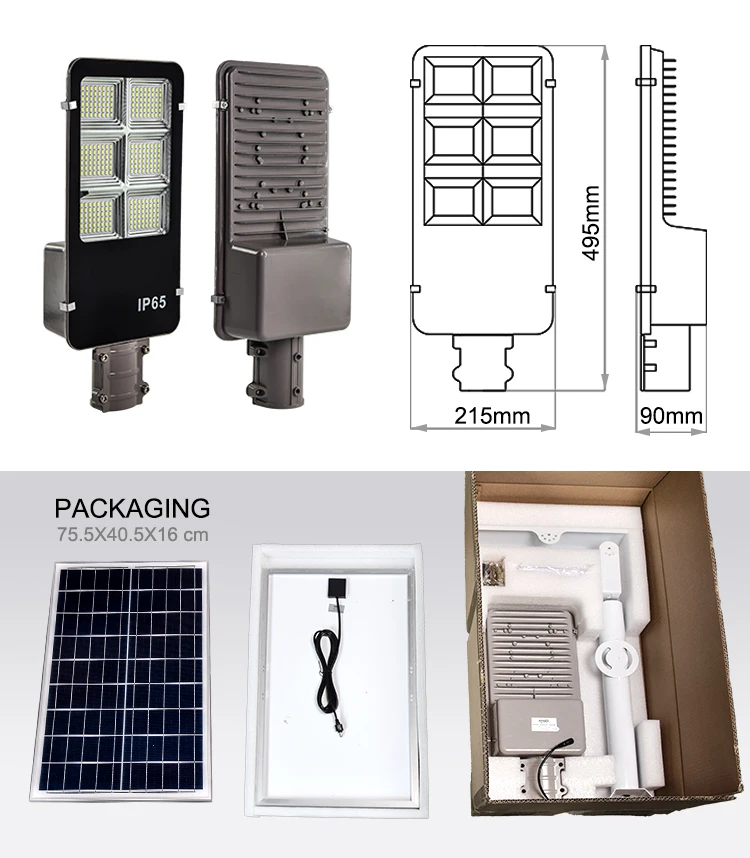

Product | Dimension(mm) | packing size (mm) | CTN (PCS) | N/W(kg) | G/W(kg) |
HF-TY-030 200W | 495*215*90mm | 755*405*160mm | 1 | 2.66kg | 7.48kg |
Related products
Why Choose Us
FAQ
Q: If i don’t know how to choose suitable configuration,can you help me to know that?
A: Of course we can.If you can tell me your LED power,
the working hours of the product you required,rainy or cloudy,we can help you.
Q: Are you a factory or trading company?
A: We are a factory.
Q: How does your factory do regarding quality control?
A: 100% of the lamp will be tested and keep lighting for 24-72 hours for 24-72 hours to
test its temperature after 24 hours' lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well.
Each lamp should pass all these QC process before shipping to customers.
Q: Can i have a sample order?
A: Yes,we are also glad to have sample order with customers.
Mixed samples are acceptable.
Q: If i don’t know how to choose suitable configuration,can you help me to know that?
A: Of course we can.If you can tell me your LED power,
the working hours of the product you required,rainy or cloudy,we can help you.
Q: Are you a factory or trading company?
A: We are a factory.
Q: How does your factory do regarding quality control?
A: 100% of the lamp will be tested and keep lighting for 24-72 hours for 24-72 hours to
test its temperature after 24 hours' lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well.
Each lamp should pass all these QC process before shipping to customers.
Q: Can i have a sample order?
A: Yes,we are also glad to have sample order with customers.
Mixed samples are acceptable.
Q: Do you have any MOQ limit for led light order?
A: Low MOQ,1pc for sample checking is available.
Q: May i know how to proceed an order for lighting products with
Huifeng tech to have business cooperation?
A: ① Pls tell us your requirements or applications,quantity.
② We’ll quote according to your requirements or our experience.
③ Customer confirms the sample and places deposit for formal order
④ We arrange the production.
Q: Can i print my logo on the products?
Can i use the product’s packing that our design?
Can you produce the products that use our design drawing?
A: Absolutely yes,we have advance machine and professional design engineer team.
Our company make sure to provide customers excellent customized service.
Q: Do you have any MOQ limit for led light order?
A: Low MOQ,1pc for sample checking is available.
Q: May i know how to proceed an order for lighting products with
Huifeng tech to have business cooperation?
A: ① Pls tell us your requirements or applications,quantity.
② We’ll quote according to your requirements or our experience.
③ Customer confirms the sample and places deposit for formal order
④ We arrange the production.
Q: Can i print my logo on the products?
Can i use the product’s packing that our design?
Can you produce the products that use our design drawing?
A: Absolutely yes,we have advance machine and professional design engineer team.
Our company make sure to provide customers excellent customized service.
