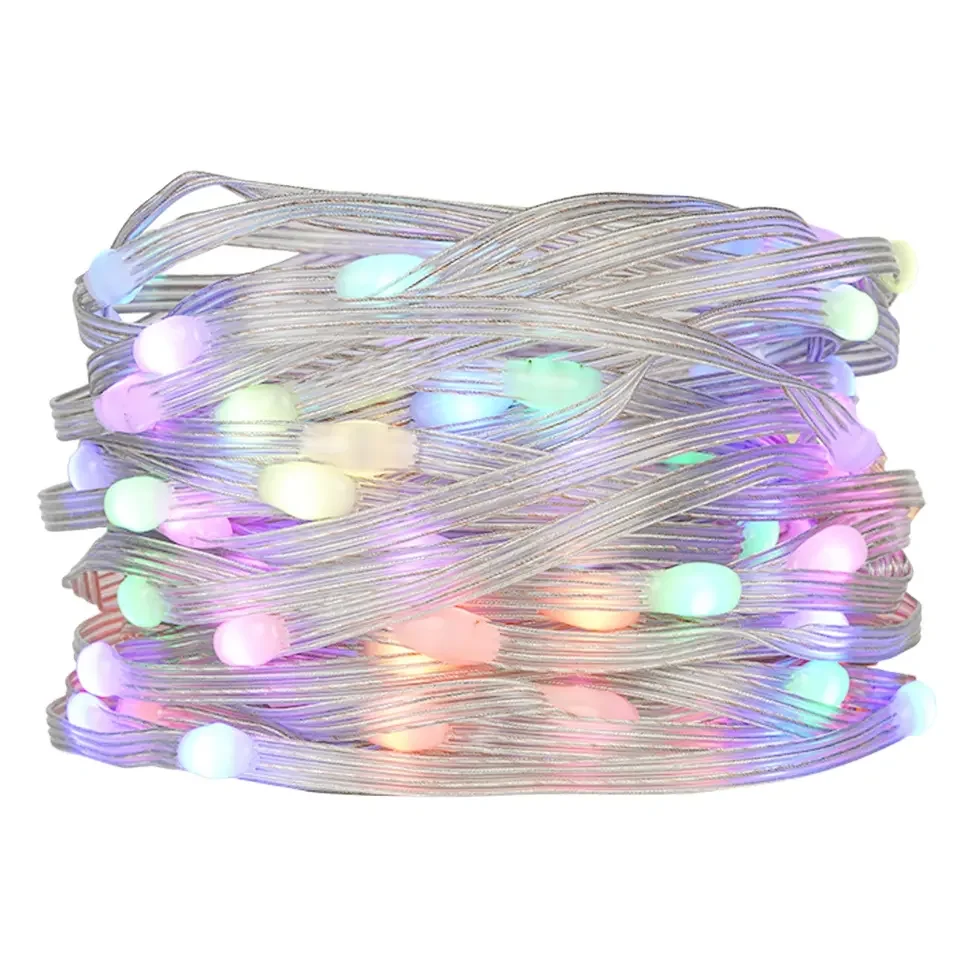

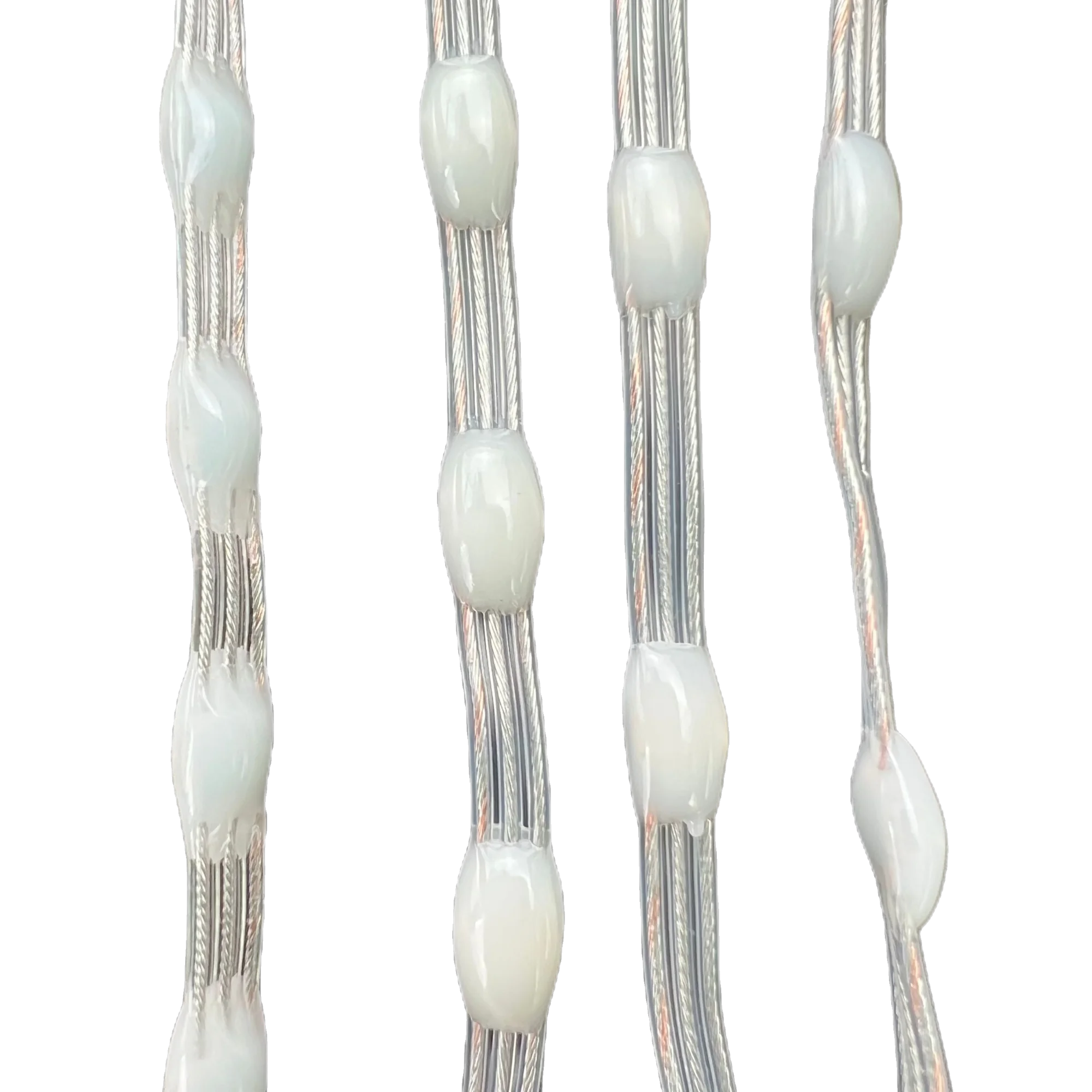

DC5V 1000/3000ct 15/20/25/30mm/50mm/100mm Pitch WS2811 LED Pebble Pixel String Light RGB Addressable Full Color IP67 Clear Wire
Item specifics
- Place of Origin:
- Guangdong, China
- Brand Name:
- RITA LED
- Model Number:
- LD-WS281-5V-1000ct-Clear
- Application:
- Residential
- Color Temperature(CCT):
- RGB
- IP Rating:
- IP65
- Lamp Body Material:
- Plastic
- CRI (Ra>):
- 85
- Input Voltage(V):
- DC 5V
- Lamp Luminous Efficiency(lm/w):
- 85
- Warranty(Year):
- 2-Year
- Working Lifetime(Hour):
- 50000
- Working Temperature(℃):
- -20 - 50
- Color Rendering Index(Ra):
- 80
- Light Source:
- LED
- Switch Mode:
- Manual Button
- Support Dimmer:
- Yes
- Lighting solutions service:
- Lighting and circuitry design
- Lifespan (hours):
- 50000
- Working Time (hours):
- 50000
- Product Weight（kg）:
- 0.7
Description
Specifications:
Working Input Voltage: DC5V
Output Power: 0.1W/pcs led.

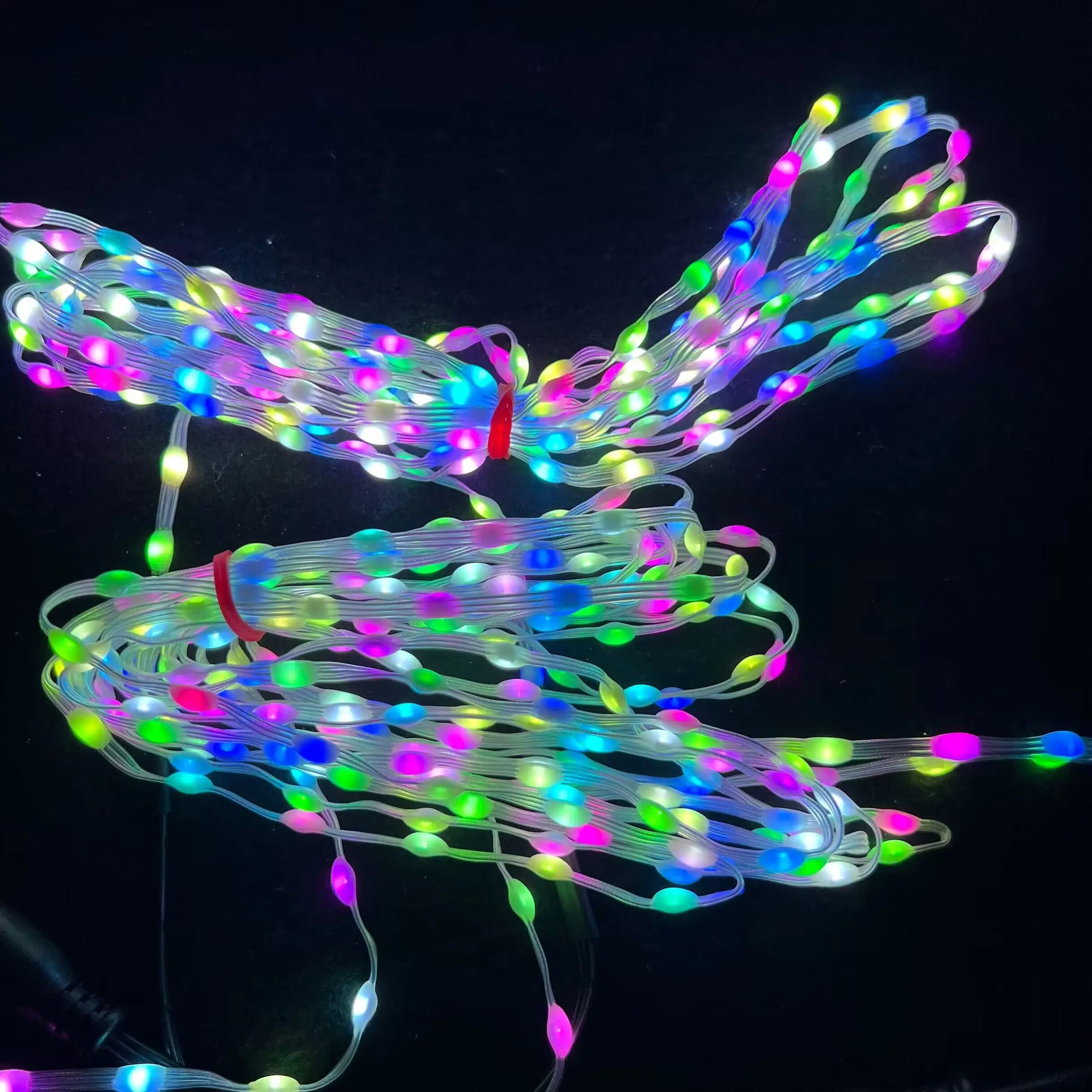

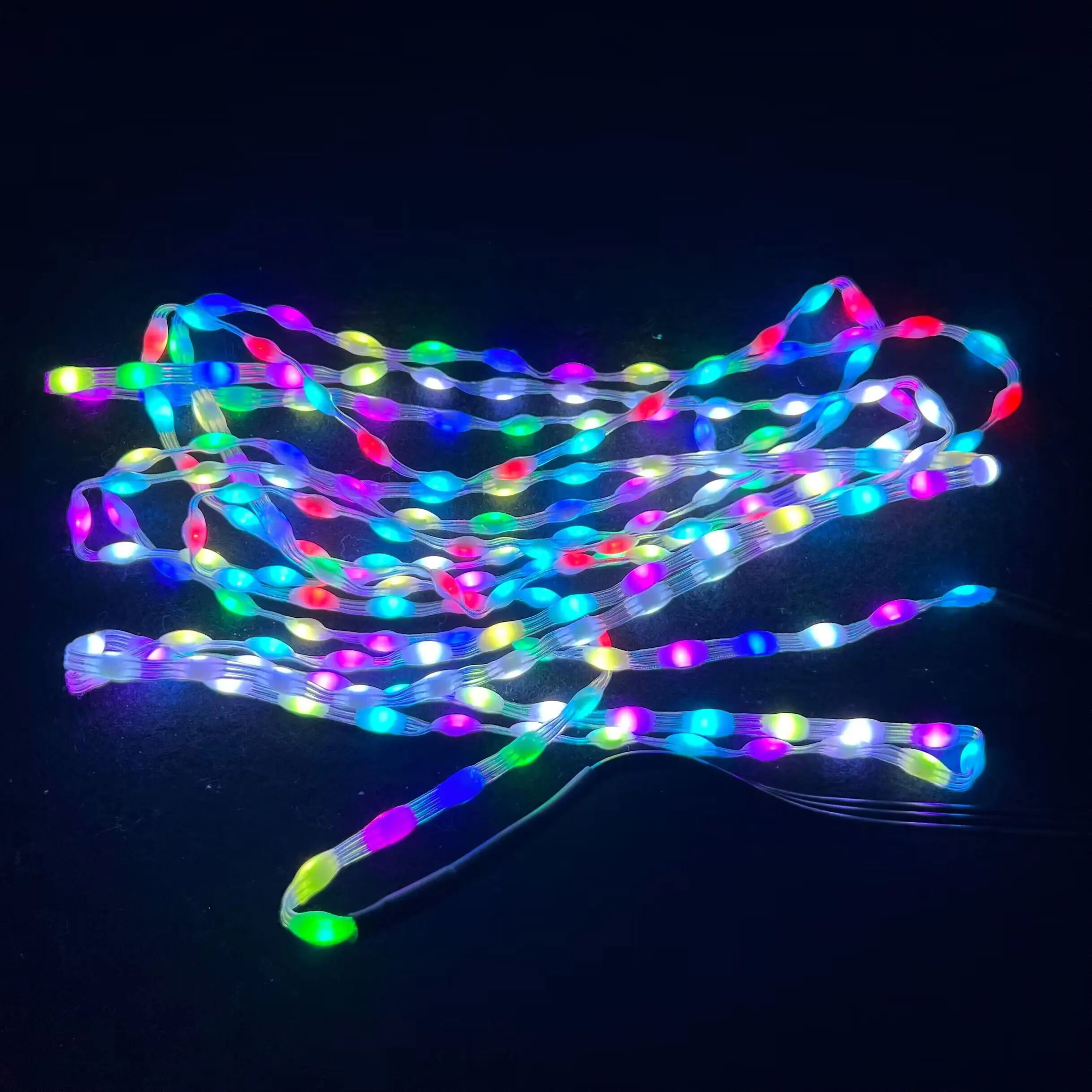

Emitted Color: WS2811 RGB IC,addressable RGB full color
Color Order: G R B (not RGB)

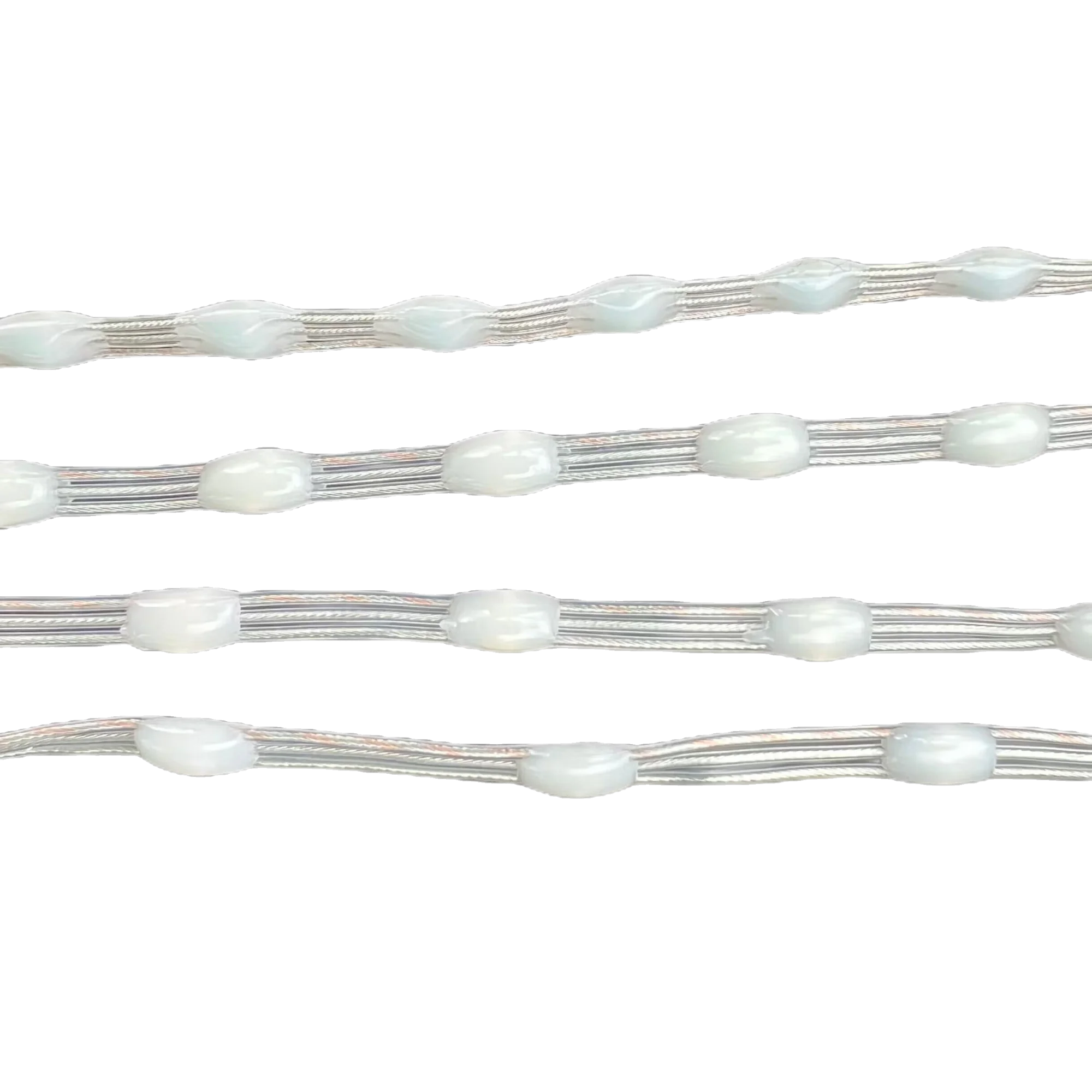

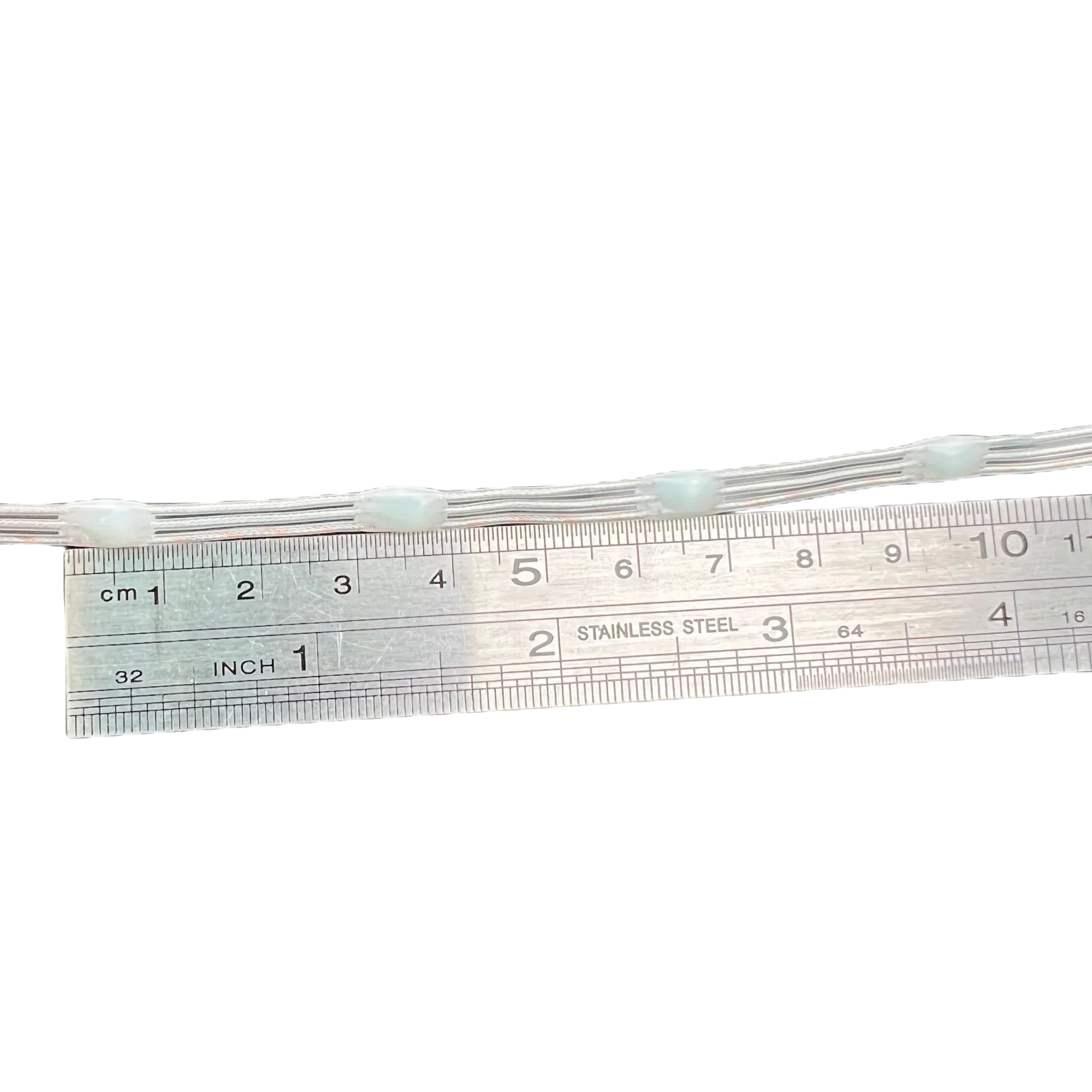

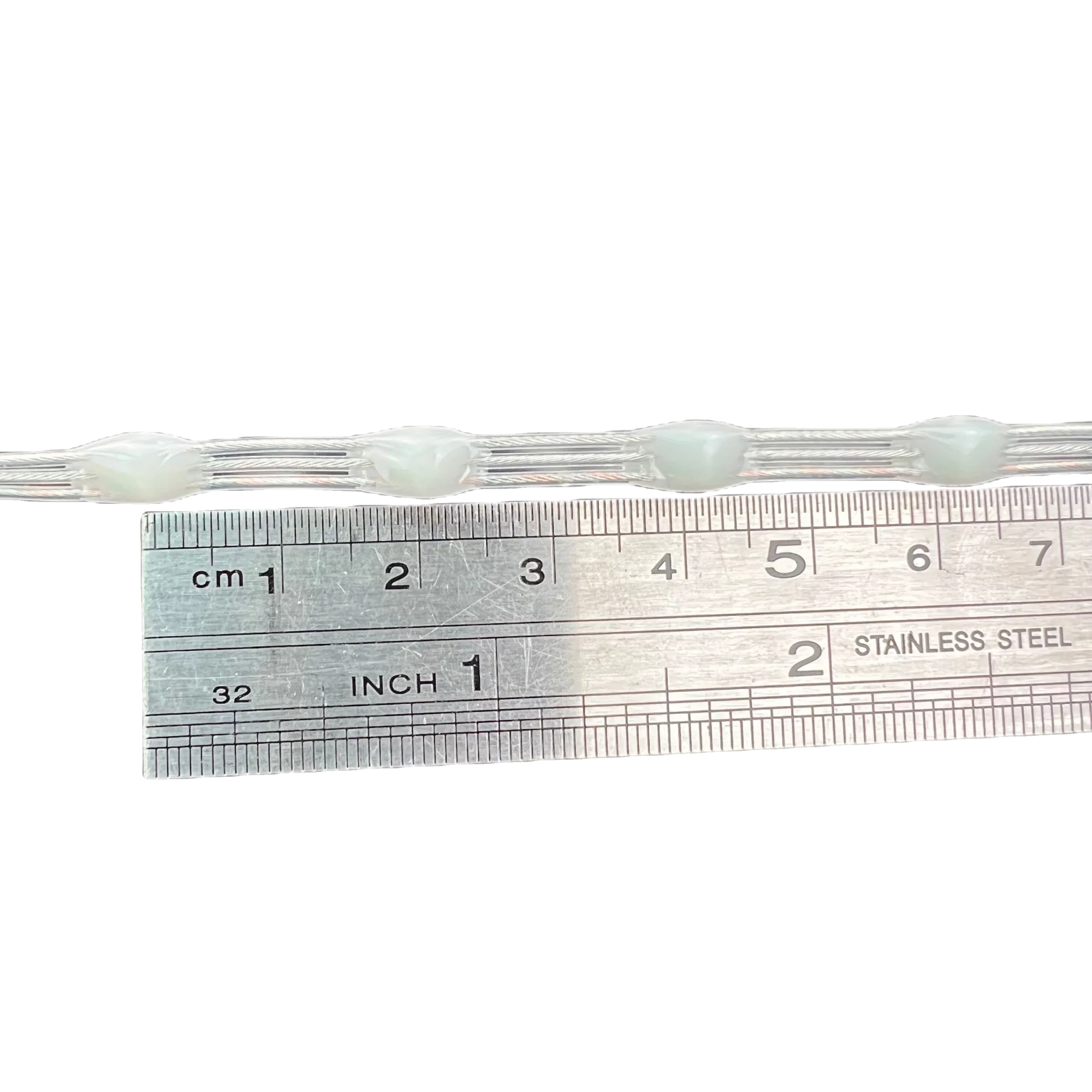

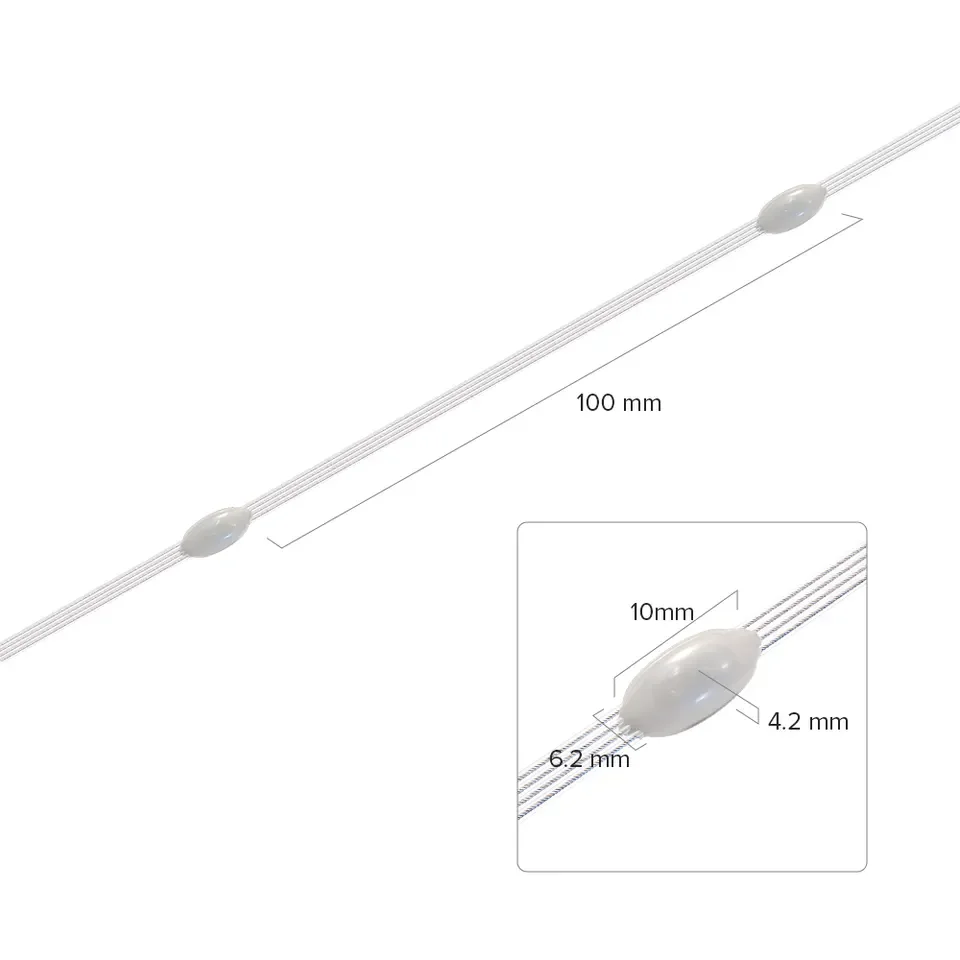

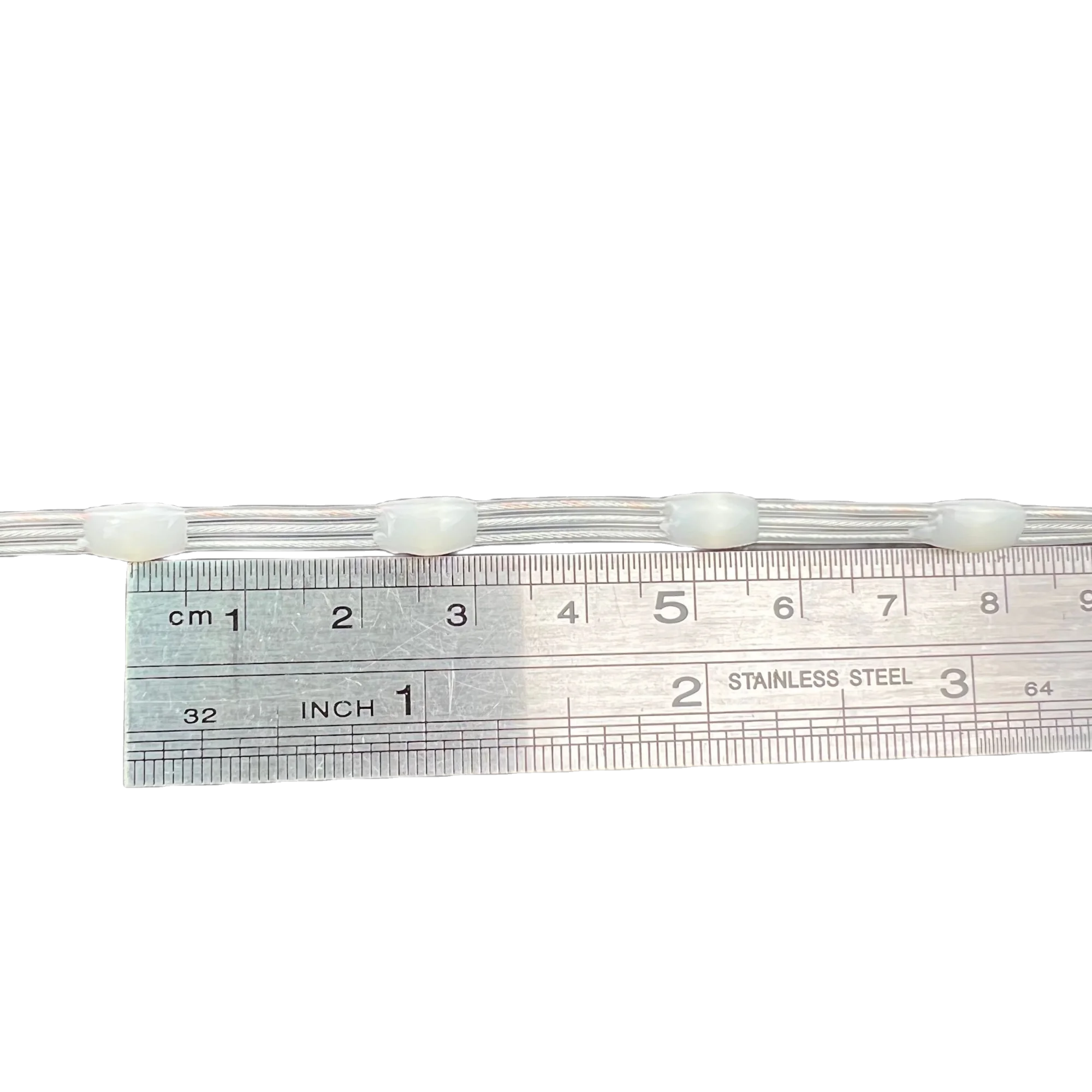

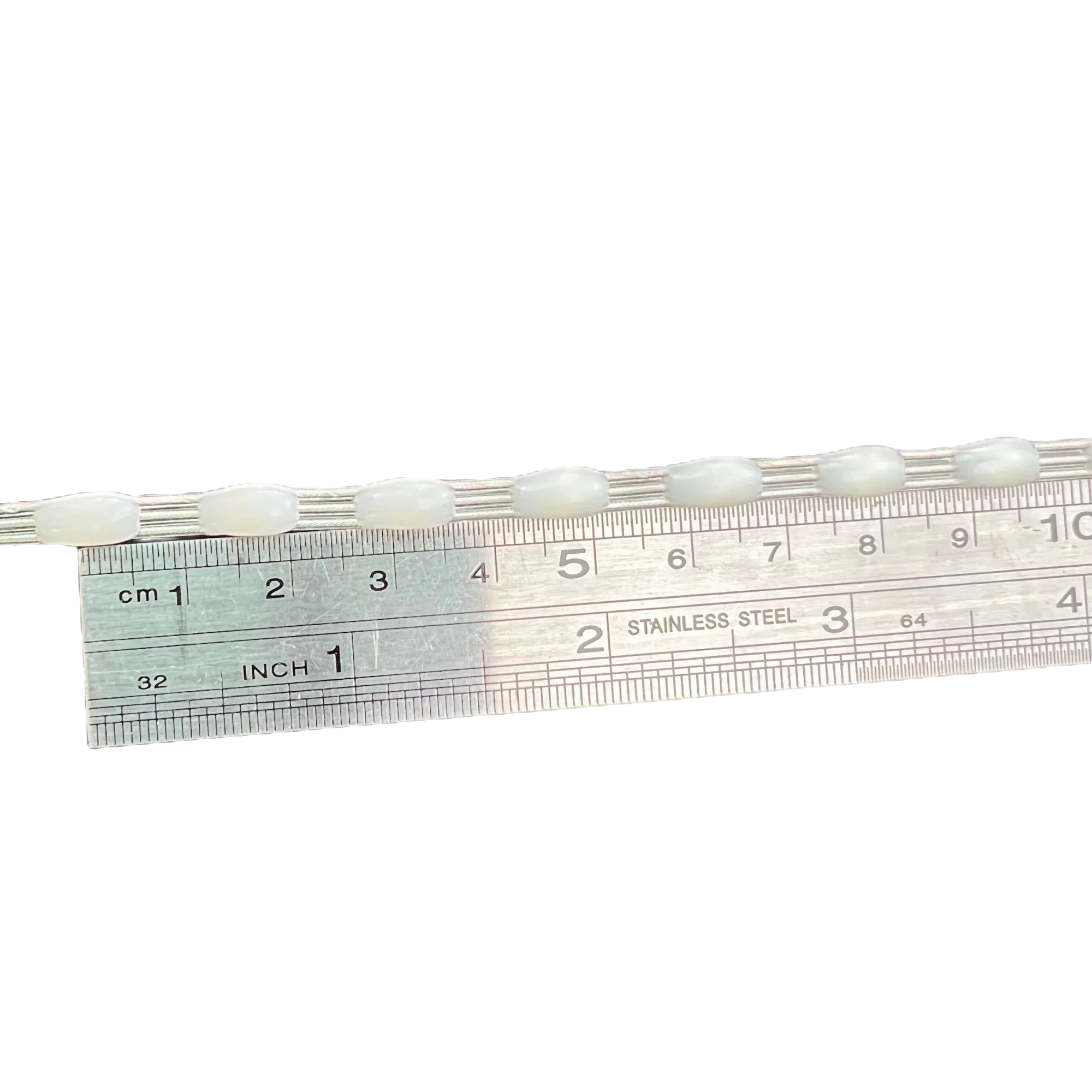

LED Space: 15mm/20mm/25mm/30mm/50mm/100mm pitch

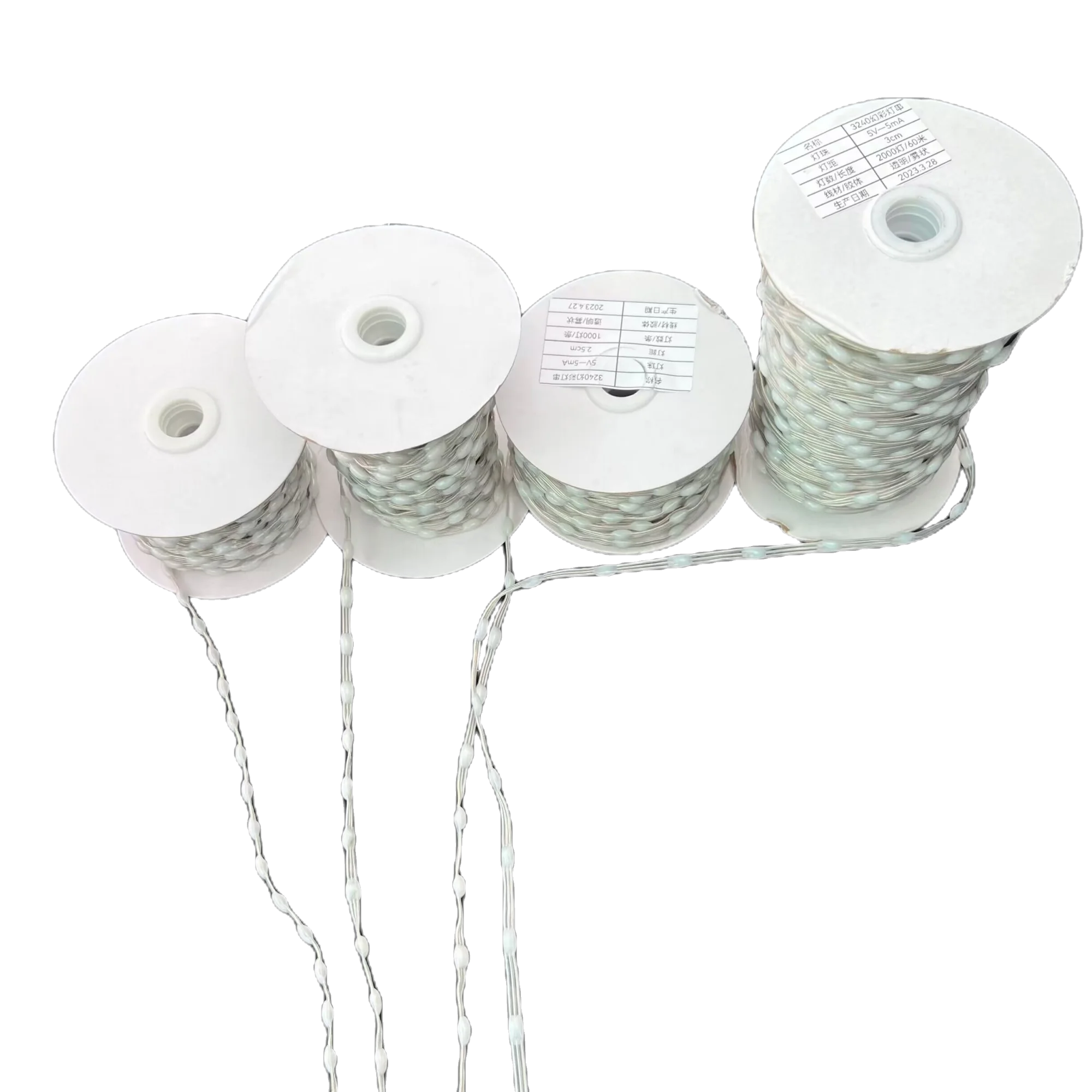

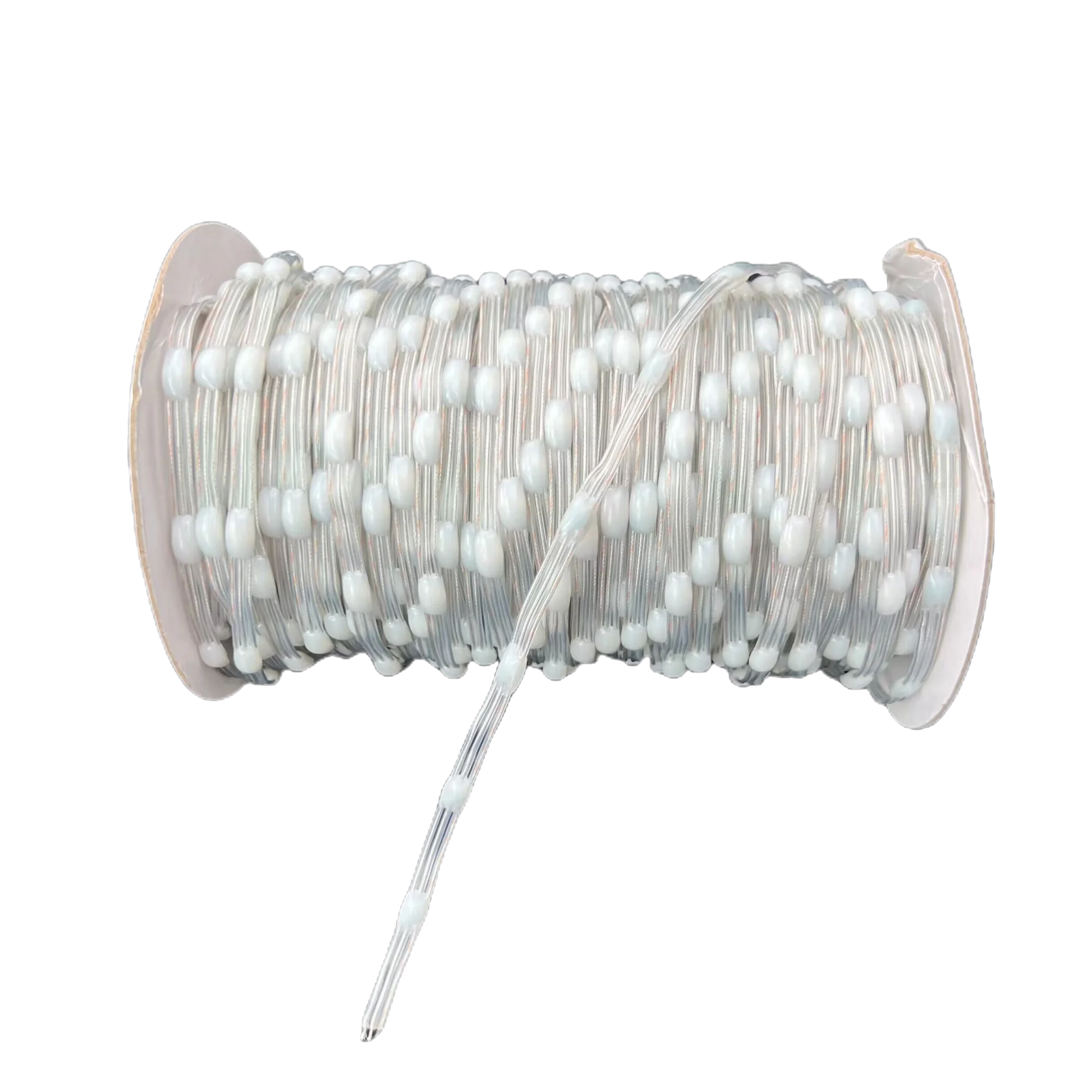

LED quantity: one LED as one pixel(addressable);total 1000ct/string
Power injection: suggest to add voltage at every 100 LED
Wire color: 22AWG all Clear 3PIN wire (VCC+,DATA,GND)
Wire length: 1.5m wire spacing; so 1000 pixels/string is 15m long
2.0cm wire spacing; so 1000 pixels/string is 20m long
2.5cm wire spacing; so 1000 pixels/string is 25m long
3.0cm wire spacing; so 1000 pixels/string is 30m long
5.0cm wire spacing; so 1000 pixels/string is 50m long
10.0cm wire spacing; so 1000 pixels/string is 100m long
View Angle: 360 degree.
Long Life: more than 50000 hours.
Working Tempreture: -20~50°.
Waterproof level:I P67 Waterproof
Warranty: 2 Year.
Warm Tips: for this 1000ct/3000ct pixels string, you can not light them up without adding power injection every 200-300 pixels, so need to cut them up to use.
Recommended Controllers:
APP bluetooth & WIFI/SD card/Artent SPI etc
