800kg Glass installtion Robot
Description
Model No.: WSR 800L series
Core Components: Plc, Bearing, Motor, Gear, Pump, Engine, Gearbox
Old And New: New
Place Of Origin: China
Warranty Period: 1 Year
Applicable Industry: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Australia, United States
Showroom Location (in Which Countries Are There Sample Rooms Overseas): United States, Australia
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Hot Product 2019
Core Component Warranty Period: 1 Year
| Selling Units | : | Set/Sets |
| Package Type | : | plywood |
| Picture Example | : |
|

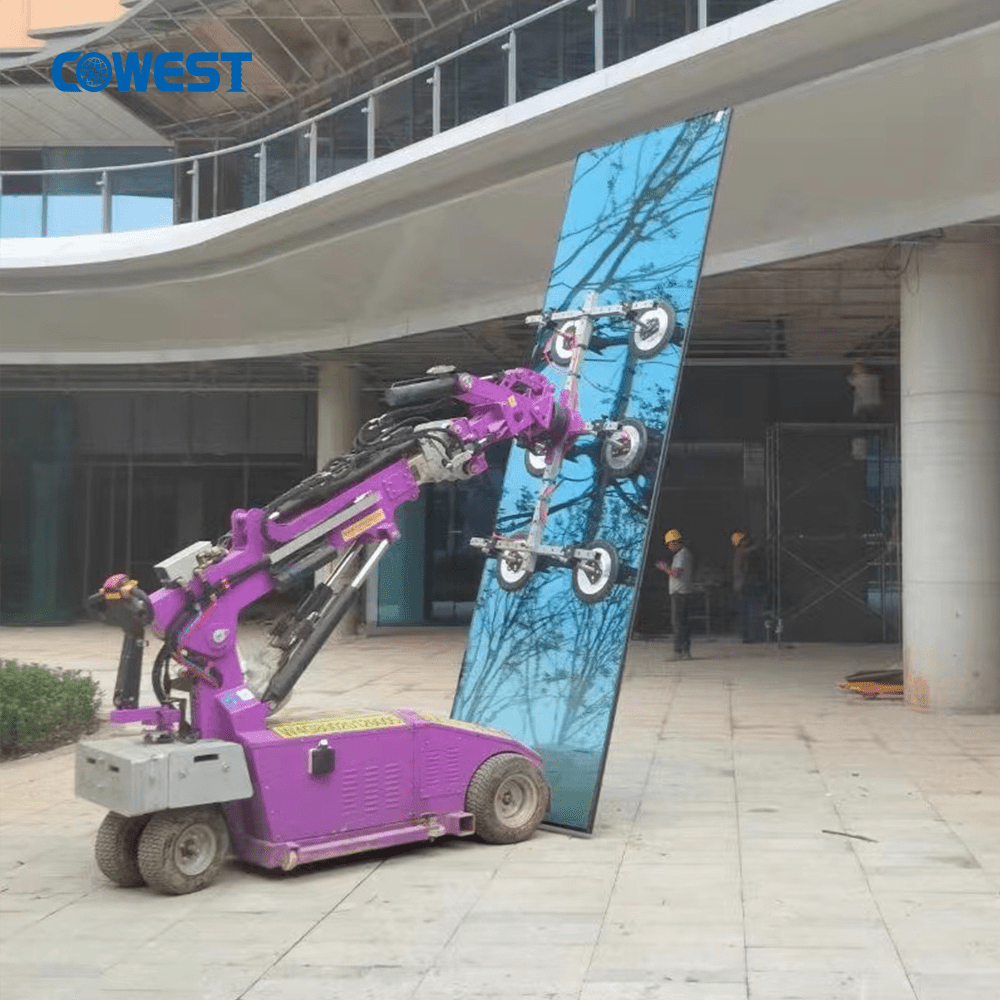

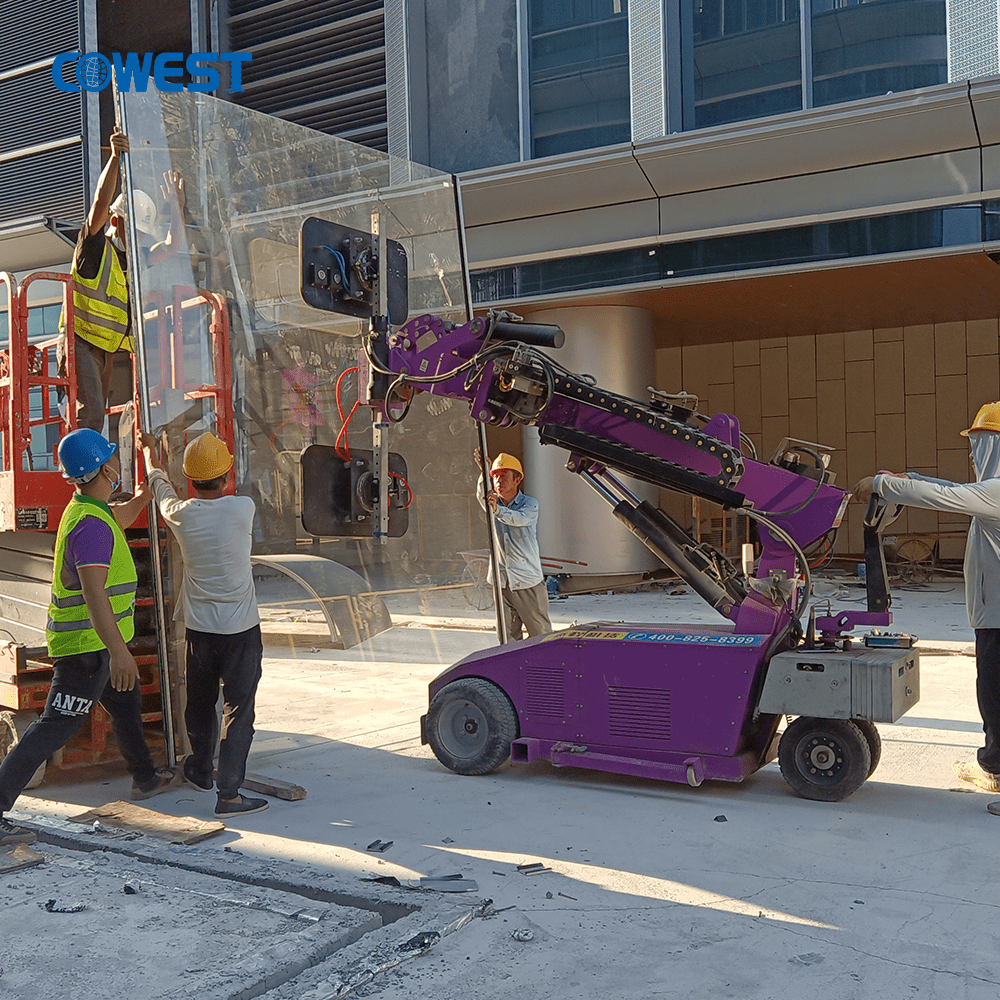

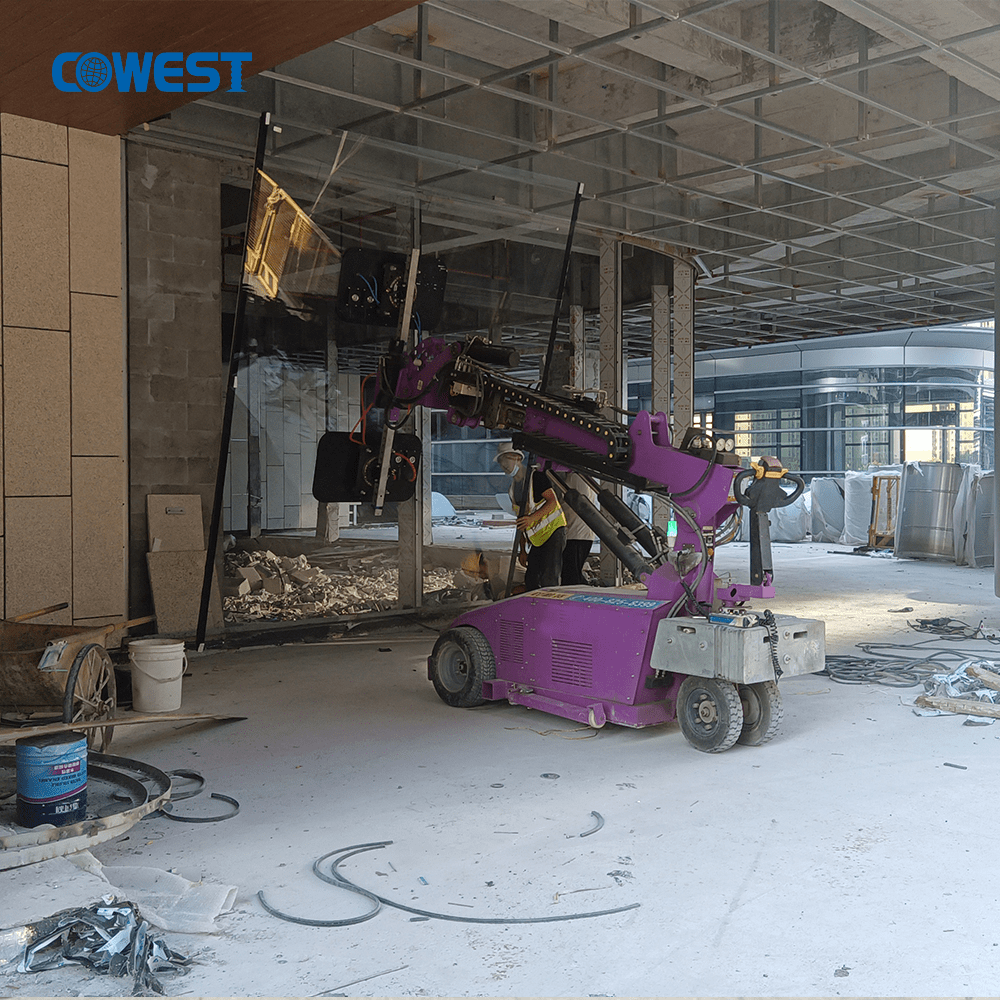

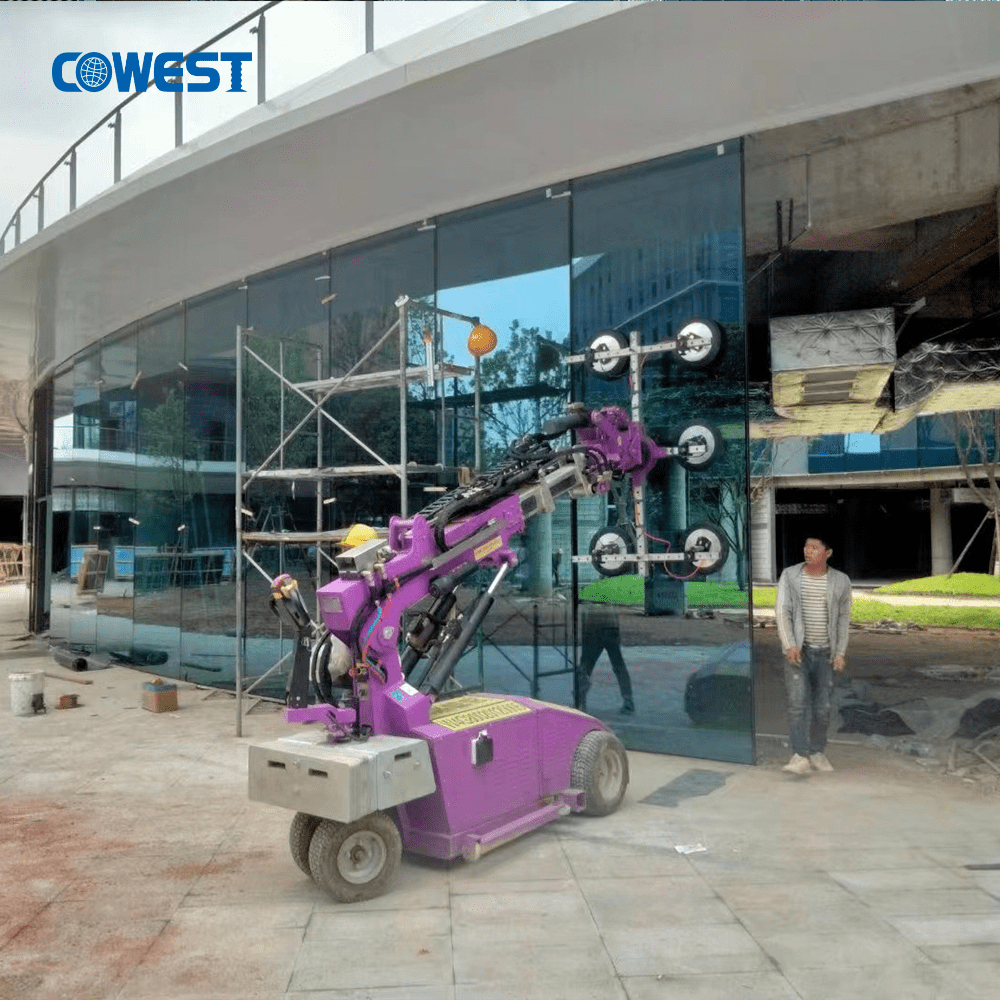

The WSR 800 series Smart Glass Installation Robot is a Glass Installation Equipment developed by our company that combines the functions of gripping, walking, lifting, Tilting and rotation by Automatic. It can be used for the Install Glass Curtain Wall , Install Glass Windows ,Install aluminium decorative panels, prefabricated concrete walls, marble and other panels on the outside of buildings or within floors. Compared to the traditional glass crane or large crane for installation, this series of Glass Installation Lifter is small and agile, multi-functional, equipped with distance measuring and anti-tip safety devices, and optional wireless remote control to achieve one-person operation; This Glass Install Machine power supplied by 2 picese of big capcity Batteries it can working 6~8 hours continuity. it can also enter the engineering lift to install glass curtain walls indoors, greatly improving operational efficiency and safety.

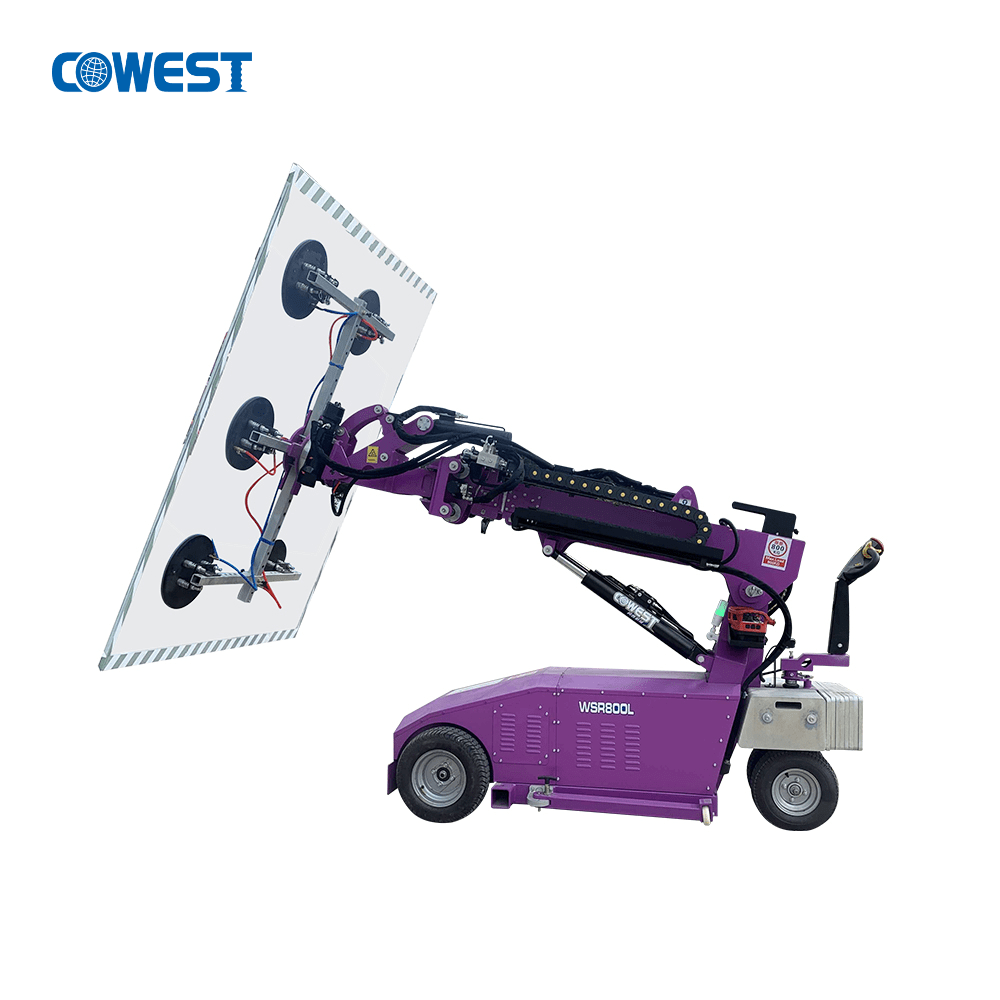

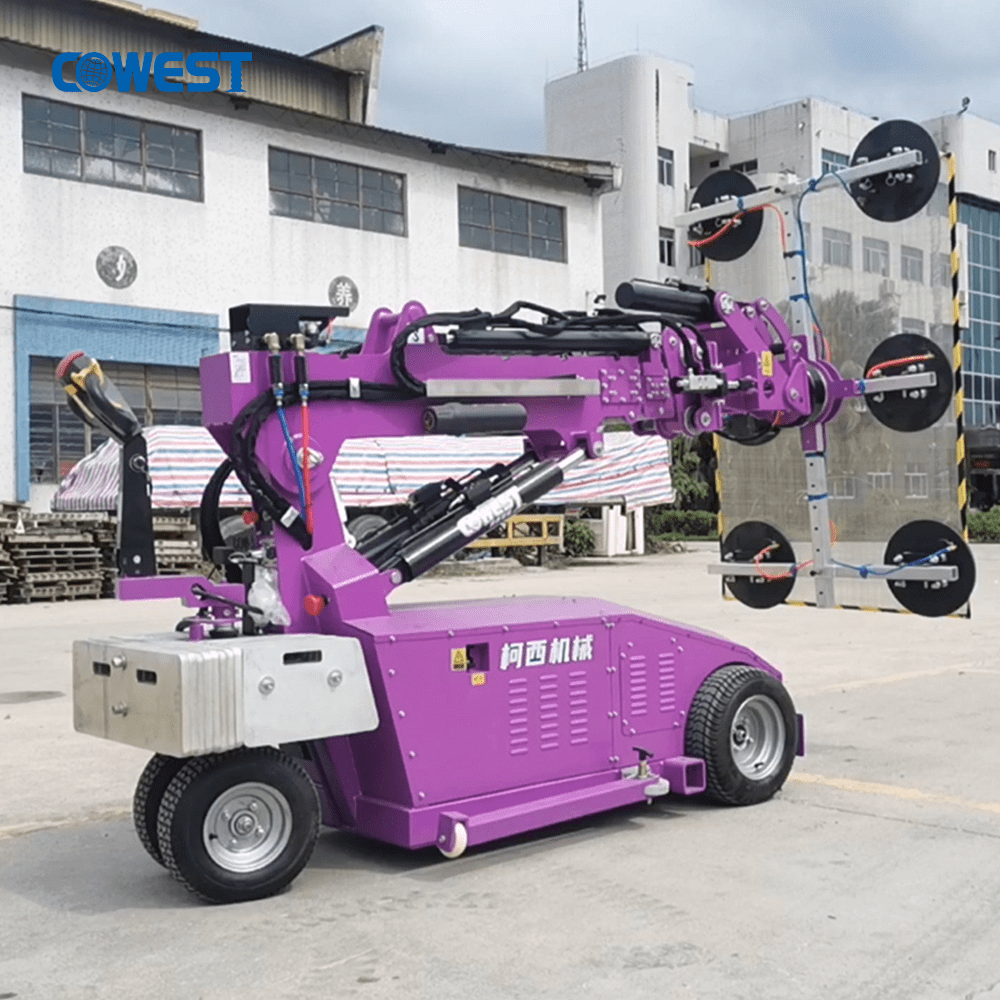

WSR800L which has max 4.6M extensiable load arm with 8 sets diameter 400mm Vacuum Pads, lifting Max 800kg Glass sheet easily . The machine can hold the glass sheet tilting ,rotate, lateral movement ect action to adjust the installation angle ,finally put the glass sheet to the right installation . All functions can be opreated by one person with wireless remote .it's really efficiently and save larbor.
WSR 800LA developed more intelligent and accurate position adjusting function device based on WSR800L, it can challenge any difficult Angle and special-shaped glass installation. It's a very attractive Glass Lifter Robot for glass installation.
| Model Type | WSR800L | WSR800LA |
| Max.Load Capacity | 800kg | 800kg |
| Max.Lifting Height | 4600mm | 4600mm |
| Max size of the Panel | 7000*3000mm | 7000*3000mm |
| Driving Speed | 0-4km/h | 0-4km/h |
| Rated Power | 2.2kw | 2.2kw |
| Drive Model | 24V,Front Wheel Drive | 24V,Front Wheel Drive |
| Drive Control | Control by operation handle | Wireless remote |
| Climbing Capacity | 12% | 12% |
| Vacuum Indication | Vacuum Gauge and Digital pressure switch | Vacuum Gauge and Digital pressure switch |
| Suction Cups | 6* Dia.400mm | 2* 350*550mm |
| Continuous Working Time | 4h-8h | 4h-8h |
| Battery Capacity | DC12V*2*150Ah | DC12V*2*150Ah |
| Battery Charger | AC110V-220V | AC110V-220V |
| Automatic Movement （controlled by wireless remote） | 1.Pad frame vertical up/down 135°automatic | 1.Pad frame vertical up/down 135°automatic |
| 2.Beam in/out automatic | 2.Beam in/out automatic | |
| 3.Powered arm up/down automatic | 3.Powered arm up/down automatic | |
| 4.Pad frame tilt left/right 90° automatic | 4.Pad frame tilt left/right 90° auto | |
| 5. Pad frame rotation 360° automatic | 5. Pad frame rotation 360° automatic | |
| 6. Lateral side shift left/ right 50mm automatic | 6. pad frame up/ down 75mm automatic | |
|
| ----- | 7.Lateral side shift left/ right 50mm automatic |
| Height Forward Extension | 1150mm | 1150mm |
| Net.Weight | 2300kg | 2500kg |
| Packing Size | 3.5*2.2*1.5M | 3.2*2.2*1.5 |
| Usages | Mainly used for handling,moving and installing glass,marble,tile etc. | |
About us
Guangzhou Cowest Machinery Equipment Ltd was established in 2008,which is a professional Vacuum handling equipment research and development, production, sales and service in one manufacturing enterprise. Our products are used in many industries such as Construction, Glass manufacturing, Chemical industry, Pharmaceutical industry, and food industry, and are exported to Europe, America, the Middle East, Southeast Asia and other regions around the world.
We have own R&D team and core product technology, and have obtained more than 30 product patents, including Movable Vacuum Tube Lifter with Fold Crane, Glass installation Robot, Stone Road installation manipulator ect. These products are one of the best in the world, and they are used in many famous enterprises and projects: Dunlop Tires, Nescafe, Brother Printer, IBM, Lipan Paint, Kohler and other products of the production line handling palletizing. Our products also participated in many famous large-scale construction projects for Glass installation .such as the glass installation projects of Beijing Library, Guangzhou Tower,Hong Kong Pacific Place,the United States Metropolis and Beijing Airport ,etc.In addition, we also cooperate with many famous construction machinery giant enterprises: Manitou, Zoomlion, Zhejiang Dingli, Sany Machinery, XCMG Group, etc. to provide technical support and accessory products.
Our company has always adhered to the philosophy of "only the best, the best in the industry", and has learned on a wide range of global technical expertise to create rock-solid product quality and safer, more personalised products that customers can buy with confidence and comfortable to use, making handling problems easy!
| Packaging Detail: | by Flexible Package, Seaworthy Package |
| Delivery Time: | 15-30 days |
1.How can customer buy parts once the Vacuum Glass lifter break down?
Thes Glass lifter adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the Glass lifter.
One of the great advantage of Glass lifter is with very very low failure rate.Even it breaks down,we can guide to repair it by
video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 4 years if you maintain it as per our maintanance manual.
4.How long is the quality guarantee of the Glass lifter?
One year quality guarantee including battery.Wheels are not included.If it breask down within one year,we can send the parts free of charge to you.
