1 ton road roller compactor storike road roller double drum road roller high quality
Item specifics
- Type:
- Tire Roller
- Travel Speed:
- 0~5km/h
- Grade Ability:
- 30%
- Place of Origin:
- Shandong, China
- Brand Name:
- storike
- Power:
- 10 kW
- Dimension(L*W*H):
- 1780*825*1985
- Warranty:
- 1 Year
- Hydraulic Pump Brand:
- SAUER-DANFOSS
- Hydraulic Valve Brand:
- SAUER-DANFOSS
- Engine Brand:
- HONDA
- UNIQUE SELLING POINT:
- Low fuel consumption
- Drum diameter:
- 700mm
- Drum:
- Double Drum Roller
- Exciting Force:
- 20KN*2
- Machinery Test Report:
- Provided
- Video outgoing-inspection:
- Provided
- Core Components:
- Other, Pump, Engine
- Product name:
- Single Drum Road Roller Compactor
- Drive Type:
- Hydraulic Motor
- Keywords:
- Road Construction Euipments
- Warranty of core components:
- 1 Year
Description

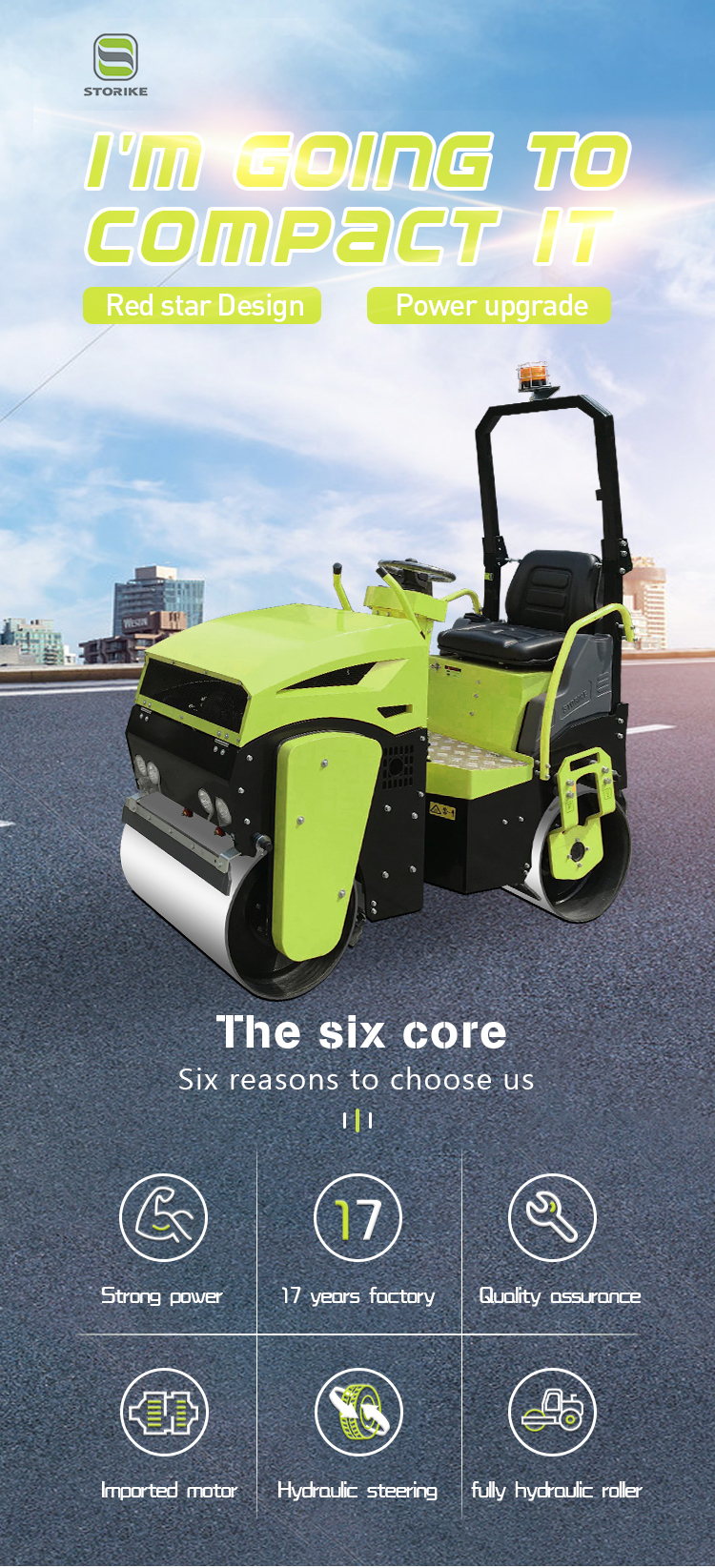

Factory host sale 1 ton vibratory road roller for construction double drum asphalt rollers
Shandong Storike Engineering & Mechanism Co., Ltd is specialized in the sales and production of small road roller, compact ram, mobile lighting car, hydraulic power station, troweling machine and other construction machine. Our products are widely used in municipal and highway pavement road roller maintenance, small area compacting and depressed trough compacting building and construction materials such as all kinds of non-cohesive materials, sandy soil, gravels, sand-macadam mixtures, stabilized soil, bituminous concrete, etc. Especially it is most economical for foundation treatment of country road, large community road, water conservancy construction and real estate development and backfill compaction of other mini-type projects.

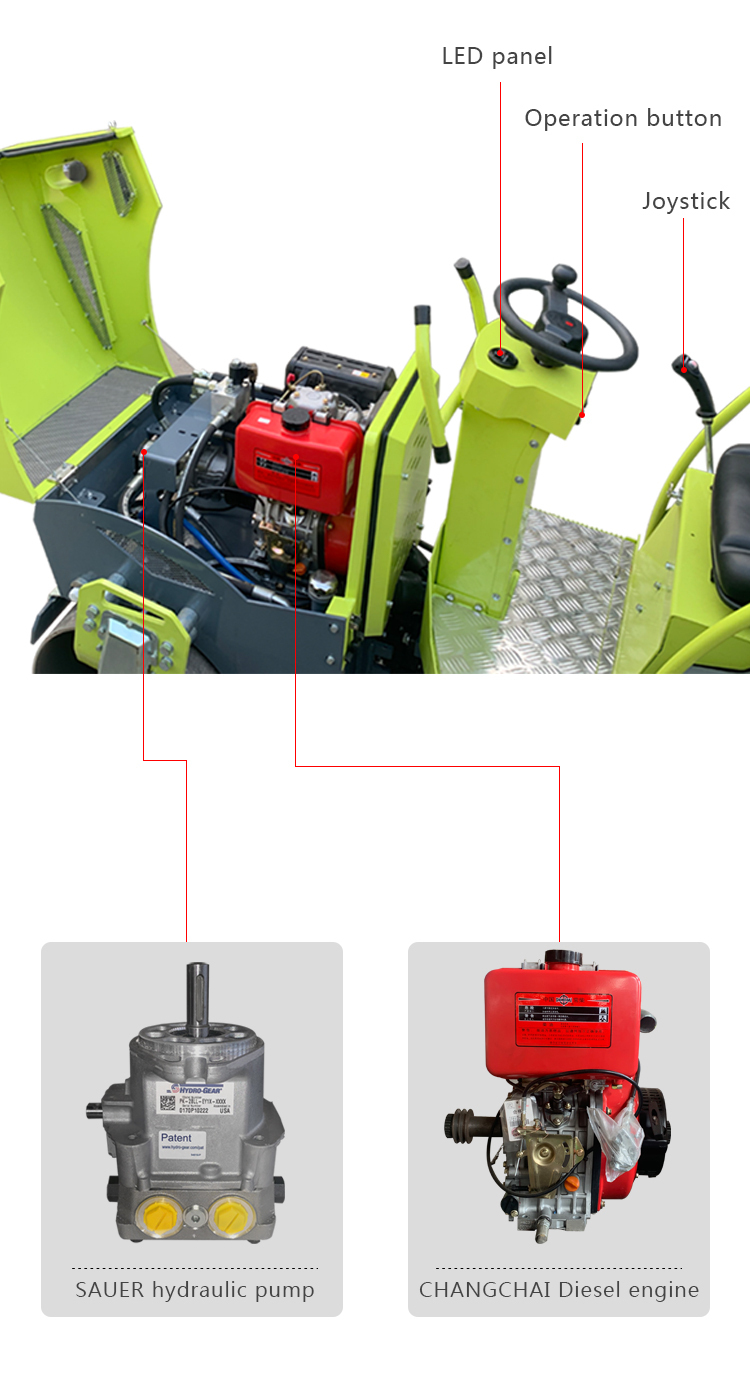

1.We use the famous brand engine, like Honda, Changchai. Also can be equipped the engine with EPA certification.

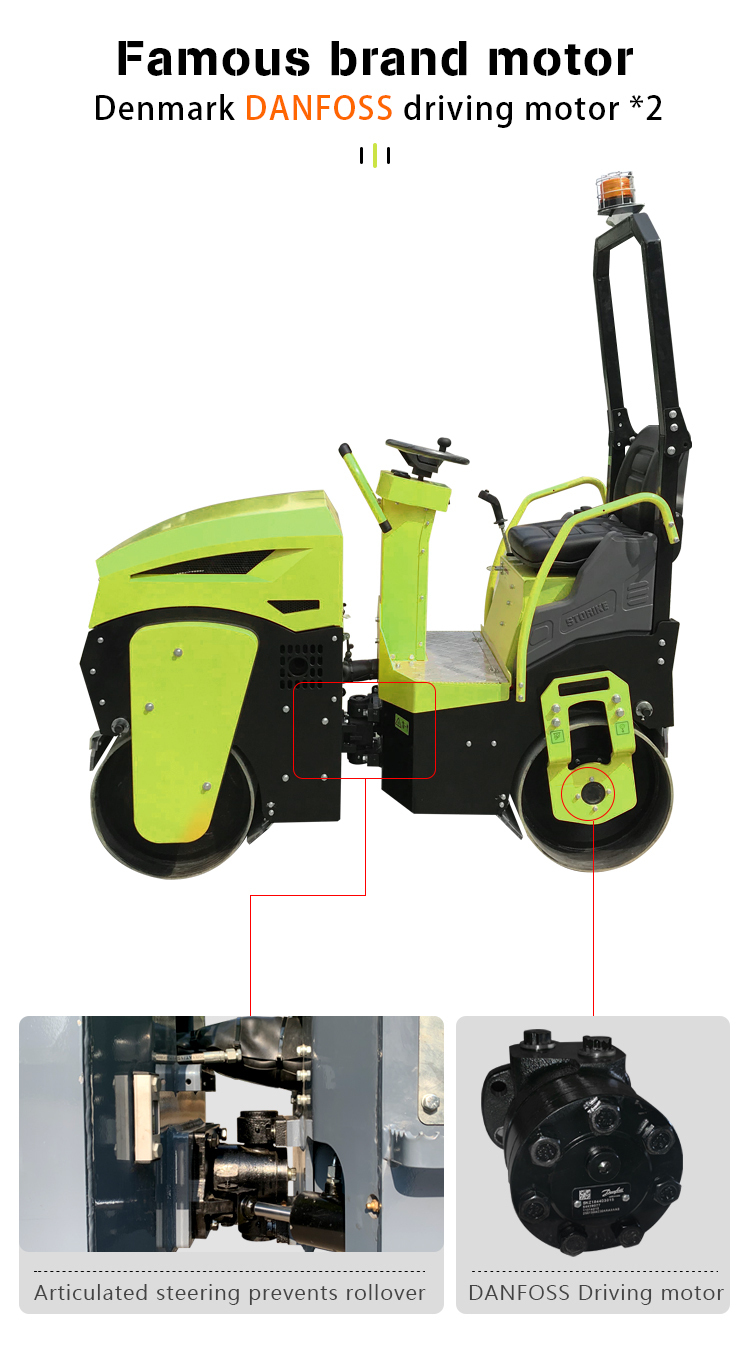

2.We use the famous brand pump and motor. The pump use the brand Sauer, the motor use the brand Danfoss.

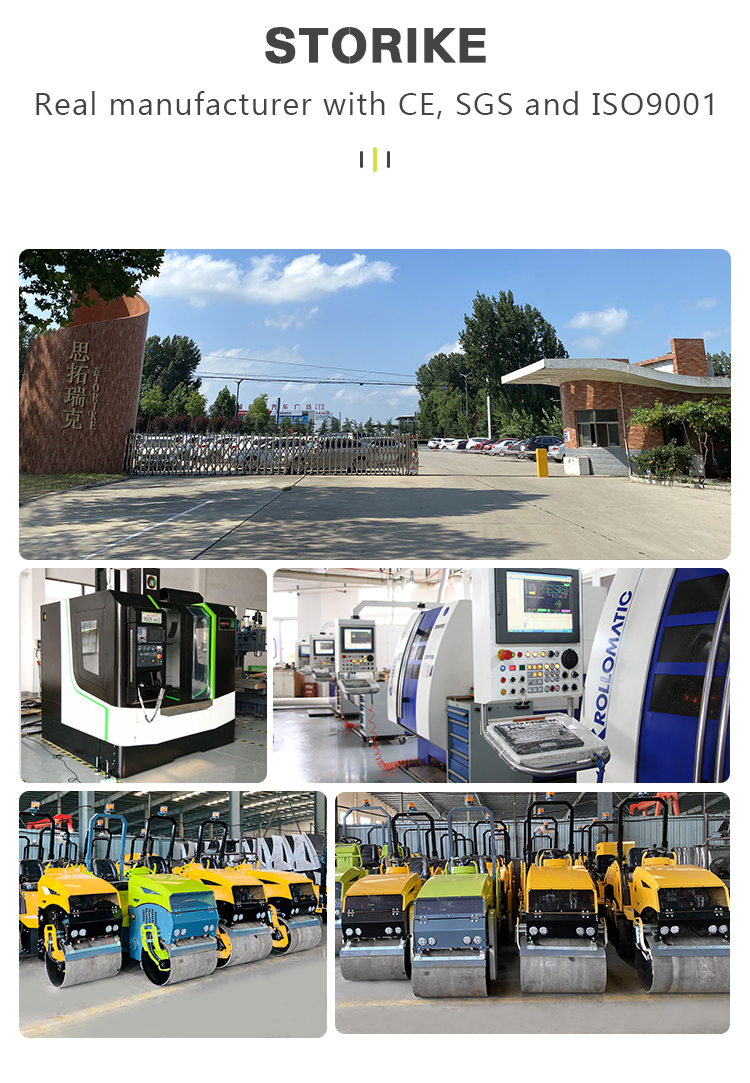

3.Our road roller passed CE, SGS and ISO9001 certification.
Factory host sale 1 ton vibratory road roller for construction double drum asphalt rollers
| ITEM NO/DETAILS | ST1000 | ST1000C |
| ENGINE | ||
| Engine | HONDA/BRIGGS&STRATTON | CHANGCHAI |
| Engine Model | GX390/25T2 | 186F |
| Engine type | Single cylinder, OHV, air-cooled, four-stroke, gasoline | Single cylinder, vertical, air-cooled, four-stroke, diesel |
| Number of cylinders | 1 | |
| Output power (KW) | 9.7/9.9 | 6 |
| Rating speed(RPM) | 3600 | |
| DRIVING | ||
| Electrical equipment(V) | 12 | |
| Drive mode | Variable plunge pump, stepless speed change, double-wheel series, parallel motor | |
| Walking speed (KM/H) | 0--8 | |
| Theoretical climbing ability(%) | 30/35(vibration on/off) | |
| STEERING | ||
| Swing angle(°) | 28 | |
| Steering mode | Hydraulic cylinder, articulated steering | |
| Steering system | Swing articulated | |
| EXCITING SYSTEM | ||
| Vibration wheel | Front | |
| Drive form | Mechanical Transmission & Electromagnetic clutch | |
| Vibration frequency (HZ) | 70 | |
| Vibration amplitude (MM) | 0.5 | |
| Exciting force(KN) | 20 | |
| SPRINKLING SYSTEM | ||
| Water spray form | Electric Intermittent | |
| CAPACITY | ||
| Hydraulic oil capacity(L) | 13 | |
| Fuel capacity(L) | 6.5 | 5.5 |
| Water tank capacity (L) | 67 | |
| SIZE | ||
| Working width(MM) | 825 | |
| Overall length(MM) | 1870/1780 | |
| Machine height(MM) | 1450/1985 | |
| Turning radius(outer)(MM) | 2600 | |
| Ground clearance(MM) | 245 | |
| Wheel track(MM) | 1230 | |
| Drum size | 500*700mm*2 | |
| Drum thickness(MM) | 12 | |
| WEIGHT | ||
| Weight(KG) | 1000 | |
| Static load(N/CM) | 56/77 | |
